ITECH IT2800 Series SMU: Award-Winning High-Precision Instrument for Efficient Testing and Measurement

The Electronics Industry Awards (EIA) recently announced its winners. Among the recipients was the ITECH IT2800 series high-precision Source Meter Unit (SMU), which clinched the prestigious title of “Test, Measurement & Inspection Product of the Year.” Notably, ITECH IT2800 SMU was the only source meter in this category. Despite facing formidable competition in the finalists, the ITECH IT2800 SMU’s exceptional design and high-performance capabilities set it apart. The Electronics Industry Awards (EIA) is a well-regarded accolade in the European electronics industry, established to recognize exceptional individuals, products, and companies across the global electronics sector. ITECH is committed to continuously introducing top-quality, highly efficient, and precise products and solutions that contribute to the future of energy conservation, environmental protection, and sustainable development.
The IT2800 series SMU, known as the “Six in One High Precision SMU,” offers a cost-effective and efficient solution for engineers. It consolidates various source and measurement functions into a compact 1/2 2U-sized device, enabling accurate voltage and current sourcing and measurement. It combines the capabilities of six devices: Voltage Source, Current Source, 6 ½ Digital Multimeter (DCV, DCI, ohms), Battery Simulator, Electronic Load, and Pulse Generator.
Featuring an intuitive graphical display, the IT2800 enhances ease of use and user-friendliness. Its front panel boasts a 5-inch color LCD display, a USB2.0 memory I/O port, a rotating navigation button, trigger button, function keys, and widely used banana jacks.
  The IT2800 Series includes both standard and LIST sweep capabilities. In standard sweep mode, it supports parameters such as linear and logarithmic modes, single and double sweep functions, and constant and pulsed sweep operations.

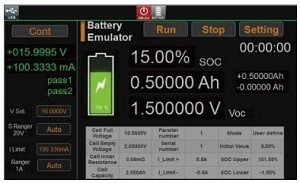

Additionally, the IT2800 Series includes a battery simulator function, which facilitates more accurate analysis of low power consumption. Thanks to the four-quadrant operating characteristics of the SMU, it can serve as a voltage source, current source, 6 ½ Digital Multimeter, and also features a built-in professional battery simulator function. This function assists engineers in better understanding the impact of battery characteristics on the power consumption and performance reliability of the Device Under Test (DUT).

ITECH IT2800 Series – Graphical Source Measure Unit

The IT2800 Series are compact and cost-effective bench-top Source Measure Units (SMUs) with the capability to source and measure both voltage and current. The IT2800 Series combine the capabilities of a voltage source, a current source, a voltage meter, a current meter and an ohmmeter (along with the capability to switch easily between these various functions). With a current range of 10fA to 10A and a voltage range of 100nV to 1000V, the IT2800 series SMU has capabilities that allow it to perform more than just simple DC and pulsed measurements to prevent errors in measurement results due to the device’s own heating.
