Showing 1–8 of 15 results

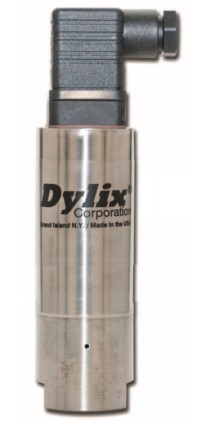

Dylix BR Series – Ultra-High Pressure Transmitters

  • 0-20k psi through 0-100k psi
  • ± 0.25% FSO Static Accuracy
  • NEMA 4X Packaging
  • ± 0.25% FSO/YR Stability
  • ± 0.25% or 0.15% FSO Static Accuracy
  • Zero/Span Controls with Cal
  • Optional Digital Output
  • Designed for high cycles

Dylix DP Series – High Line Differential Pressure Transmitters

  • Ranges from: 0-15 psi through 0-6k psi
  • 316L SST wetted parts
  • ± 0.25% FSO Static Accuracy
  • ± 0.25% FSO/YR Stability
  • Line pressure up to 7000 psi
  • 20X over-pressure protection
  • Optional All Hasteloy C-276 wetted parts (available to NACE)
  • Optional Accuracy to ±0.1% FSO Static Accuracy

Dylix DPC Series – High Line/Low Differential Pressure Transmitters

  • Ranges from 0-5 inwc through 0-50 psi
  • 1,000 psi over-pressure protection either side
  • 316L SST wetted parts
  • ± 0.25% FSO Static Accuracy
  • ± 0.25% FSO/YR Stability
  • Line pressure up to 1,000 psi
  • Optional Accuracy to ±0.1% FSO Static Accuracy

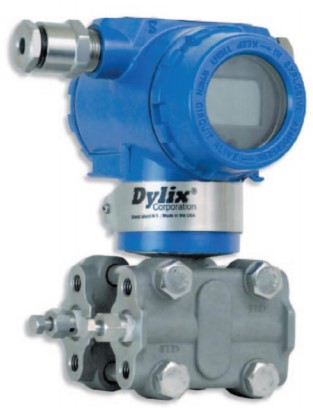

Dylix DPL Series – Process Differential Pressure Transmitters

  • 5″ H2O through 750″ H2O
  • 316 SST diaphragms and flanges
  • All 316 L SST wetted surfaces
  • External zero and span adjustments
  • ± 0.1% FSO Static Accuracy
  • ± 0.25% FSO/YR Stability
  • Hasteloy C-276/ Monel diaphragms
  • Hart Protocol
  • Local display

Dylix EXD Series – Explosion Proof Differential Transmitters

  • Hermetically Sealed Package
  • ±0.25% FSO Static Accuracy
  • 0-5” H2O through 0-5,000 psi
  • Low Cost; Starting @ $725.00
  • Analog or Switching Output
  • Wet/Wet
  • ±0.1% FSO Static Accuracy
  • ±0.5% FSO Thermal Error Band
  • Hasteloy or Inconel alt. materials
  • Low power

Dylix FD Series – Tank Level Transmitters

  • ±0.25% FSO Static Accuracy
  • Media temperature up to 300 °F
  • ±0.25% FSO/YR Stability
  • Fast Thermal Response Time
  • 316L SST standard material of construction
  • Hasteloy C-276 available
  • Optional ±0.1% FSO Static Accuracy
  • Optional Improved Thermal Error Band to±0.5% FSO per 100 °F
  • Digital Output

Dylix FH Series – Homogenizer Pressure Transmitter

  • ± 0.5% FSO Static Accuracy
  • NEMA 4X Packaging
  • ± 0.25% FSO /YR stability
  • Optional ±0.25% FSO Static Accuracy
  • Alternate Wetted Materials,
  • Hasteloy or Inconel sensors available
  • NEMA 4X Packaging
  • Zero/Span Controls/ Shunt Cal

Dylix FL Series – General Industrial Flush Mount Transmitters

  • ± 0.5% FSO Static Accuracy
  • NEMA 4X Packaging
  • ± 0.25% FSO /YR stability
  • Optional ± 0.25% FSO Static Accuracy
  • Alternate Wetted Materials,
  • Hasteloy or Inconel sensors available
  • Zero/Span Controls/ Shunt Cal
