Sept 20 2018 |

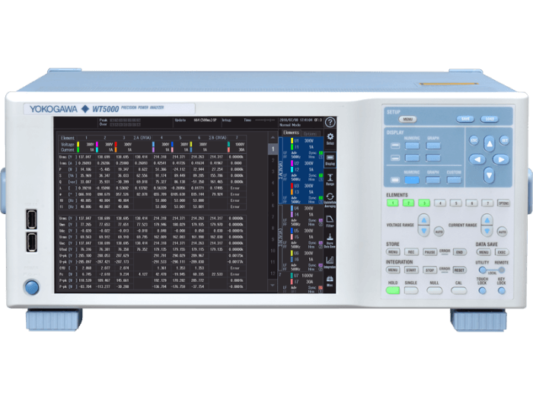

- Yokogawa Electric Corporation (TOKYO: 6841) announces that it has developed the next generation of precision power analyzers that offer exceptional measurement accuracy of ±0.03%. The WT5000 combines accuracy with stability, noise immunity and flexibility to meet the measurement needs of those who develop energy-efficient systems.
- In the rapidly evolving industry sectors of electric vehicles, renewable energy, and energy efficient technologies, the need for reliability in testing to enhance safety, efficiency and performance has never been greater. In the WT5000 Precision Power Analyzer, engineers have a versatile platform that delivers both reliable measurements for today’s needs and is flexible to meet the needs of tomorrow.Yokogawa developed the WT5000 Precision Power Analyzer to help satisfy evolving application requirements and ever-changing international standards that call for custom measurements and consistent accuracy.
- Exceptional measurement accuracy:
The WT5000 achieves the world’s highest measuring accuracy: ±0.03% at 50/60 Hz, allowing precision evaluation of power consumption, loss, and efficiency of electrical and electronic devices. The wide dynamic current range of the WT5000 is indispensable for testing energy-saving designs.One of the essential elements for determining the performance of a power measuring instrument is the A/D converter that performs analog-to-digital conversion. In order to obtain the world’s highest measurement accuracy, the WT5000 uses an 18-bit converter with a sampling frequency of 10 MS/s. This allows for precise capture of waveforms from the latest high-speed inverter devices while producing a stable measurement.
- Up to 7 Input Channel Modular Flexibility:
While the WT5000 has the same dimensions as existing models in Yokogawa’s WT series, it incorporates up to seven input channels, supporting applications that previously would have required synchronization of 2 multiple instruments. As a result, it offers considerable savings in installation space, communications overheads, and cost-effectiveness.Further benefits result from the use of plug-in modular input elements, which can be swapped directly by the user. The 30 A and 5 A elements can be switched for applications involving electric vehicles or fuel-cell vehicles, where developers are increasingly required to evaluate a number of different motors. Using the WT5000 equipped with the /MTR1 and /MTR2 options, it is possible to evaluate up to four motors simultaneously with one unit. These options support A, B, Z position signals from encoders as well as analog or pulse type signals from torque meters.
Harmonic measurements for multi-phase systems is greatly enhanced due to the 7 element input design. Simultaneous dual harmonic analysis can be performed up to the 500th order and up to a 300 kHz fundamental waveform. This enables measurement of the fundamental frequency from the rotational speed of the motor, while also checking the influence of the switching frequency from inverter drive.
- External sensor input function is fitted as standard:
An external current sensor input function is fitted as standard in the input element of both the 30 A and 5 A input elements of the WT5000 in order to meet the needs of an increasing number of applications that require the evaluation of larger-current devices, such as electric vehicles and large-scale solar installations. For much higher currents (up to 2000A RMS) dedicated high-current sensors are available. Yokogawa AC/DC CT series sensors are current output in order to minimize the influence of noise, the 5A input element is well suited for use with these current sensors.
- Applications:
Manufacturing testing and inspection, in addition to research and development of products requiring high precision power testing.
Applications involving electric vehicles or fuel-cell vehicles, where developers are increasingly required to evaluate a number of different motors.
- The WT5000 Precision Power Analyzer precisely tests and evaluates power output and loss with consistency and accuracy. This power analyzer accommodates a variety of plug-in options to streamline efficiency and 3 reduce or eliminate the need for multiple devices in the power testing phase. Users have the flexibility to utilize the features of the WT5000 specific to their application, increasing efficiency and providing cost savings while producing extremely accurate results.
|
 |
|
June 12 2018 |
- RIGOL introduced our Real-Time Analysis solutions with the RSA5000 earlier this year. It combined the power of a high performance swept spectrum analyzer with superior Real-time performance unmatched in this product category. Now, with the introduction of the RSA3000, RIGOL is extending its Real-Time Analysis solutions to applications that don’t require the high performance or standard options of the performance RSA5000 Series. Price sensitive engineers looking to bring Real-Time Analysis to their test bench can now get an upgradable, powerful solution at an exceptional entry price.
- Available in 3.0GHz and 4.5GHz models with available tracking generators, the RSA3000 comes standard with 10MHz of Real-time analysis bandwidth but can be upgraded to 40MHz at any time. With the 40MHz option applied, the RSA3000 delivers the same seamless capture, minimum probability of intercept (POI) of 7.45 µs, 7 rich visualization modes and powerful triggering capability as the RSA5000 providing a complete real-time analysis package for engineers at lower entry price.
- Available in 3.0GHz and 4.5GHz models with available tracking generators, the RSA3000 comes standard with 10MHz of Real-time analysis bandwidth but can be upgraded to 40MHz at any time. With the 40MHz option applied, the RSA3000 delivers the same seamless capture, minimum probability of intercept (POI) of 7.45 µs, 7 rich visualization modes and powerful triggering capability as the RSA5000 providing a complete real-time analysis package for engineers at lower entry price.
- The RSA3000 can also function as a traditional swept spectrum analyzer with solid specifications sufficient for most applications. Resolution Bandwidth (RBW) is standard at 10Hz with an option for 1Hz, noise floor as low as -161dBm, phase noise of -102dBc/Hz, and a full span sweep as fast as 1ms.
- “Engineers are increasingly looking to Real-Time Spectrum Analysis to solve their RF integration and debug challenges. The RSA3000 brings to these engineers the same exceptional value for Real-Time Analysis that RIGOL’s DSA815-TG has in traditional swept applications,” says Michael Rizzo, General Manager of RIGOL North America. “With entry price of only $6075 CAD, complete real-time upgradability and sufficient swept spectrum specifications for most general purpose applications, the RSA3000 is a great option for customers needing real-time analysis capabilities with limited budgets.”
- The RIGOL RSA3000 takes 146,484 FFTs per second providing a minimum 100% POI of 7.45 µs. This class leading performance allows users to confidently capture pulsing, hopping and fast transient signals as short as 7.45 µs and display accurate power 100% of the time. Signals as low as 1 µs can be captured thanks to our seamless FFT capture. The RSA3000 provides 7 rich data views to allow engineers to visualize the most complex RF environments. Density Displays help to see time varying signals and resolve hidden and superimposed signals in the same frequency band. Spectrogram Displays allow users to evaluate changes in signal behavior over time, especially useful in identifying hopping patterns and characterizing PLLs. Power versus Time Displays show the RF Power for the real time span over a user defined time span helping measure the duration and timing of pulsing signals and characterizing signals with amplitude modulation like ASK.
- RIGOL Real-time Spectrum Analyzers come standard with an IF output which converts the entire real-time span to a 430MHz carrier. Using this capability, along with a 500MHz Oscilloscope the user can complete detailed multi-domain measurements when integrating Wireless technologies. The new RIGOL DS7000 Oscilloscope provides an Enhanced High Resolution Color FFT capability perfect for this type of multi-domain measurement.
- RIGOL Real-time Spectrum Analyzers come standard with an IF output which converts the entire real-time span to a 430MHz carrier. Using this capability, along with a 500MHz Oscilloscope the user can complete detailed multi-domain measurements when integrating Wireless technologies. The new RIGOL DS7000 Oscilloscope provides an Enhanced High Resolution Color FFT capability perfect for this type of multi-domain measurement.
- The RSA3000 is available and shipping now. Please contact RIGOL or any authorized partner for information.
|
 |
|
June 12, 2018 |
- The 7000 Series delivers unmatched price/performance capability in a mid-range oscilloscope. With 10GSa/sec Sample rate and up to 500M Record Length the 7000 Series can deliver 20X Oversampling on a 500MHz signal providing unmatched signal resolution while still capturing a full 50ms; significantly longer than available in competitive products.
- The core of the 7000 Series Oscilloscope is RIGOL’s new UltraVision II architecture and its Phoenix chip-set. Two custom ASICs provide analog front end and signal processing performance. These chips are surrounded by a high performance hardware design including Xilinx Zync-7000 SoC, Dual Core Arm-9 Processors, Linux +Qt Operating System, High Speed DDR System Memory and QDRII Display memory. This architecture enables a high waveform capture rate of 600,000wfms/sec, color graded intensity display, and outstanding time-base accuracy and jitter performance.
- “RIGOL will be celebrating our 20th Anniversary in 2018. We shipped our 1st Oscilloscope in 1999 and the 7000 Series represents our 10th generation oscilloscope. We are very excited about our new proprietary chip-set and the transformational capabilities it allows us to bring to market,” says Michael Rizzo, General Manager of RIGOL North America. “Constant innovation has allowed RIGOL to reduce our customers cost of test while still delivering uncompromised performance products. The new Phoenix Chip-set is an investment in technology that will be a building block for years to come.”
- The 7000 Series comes with a next generation user interface giving the customer five unique ways to interact with their instrument. A vivid 10.1″ (1024×600) display supports a responsive and intuitive touch navigation. Customers requiring a larger display can take advantage of the native HDMI support to drive large displays and control the instrument with a mouse. The DS7000 also supports a touch enabled browser capability so you can control the instrument on your network via a tablet or smartphone. Traditional knobs, buttons, and soft keys are still available for those who choose to work with a traditional UI. Lastly, the UltraScope remote control and display software will let users interface with the unit directly from their PC.
- Solving customer’s challenges requires analysis capabilities and the 7000 Series provides a comprehensive set of advanced analysis tools. Six-in-One capability provides multiple instrument types. Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Digital Voltmeter, and Counter/Totalizer are all integrated into the 7000 Series. Beyond that tools like Zone Triggering, 41 Precision Measurements, Multiple High Resolution Color FFTs, as well as standard Histogram and Pass/Fail Analysis make the 7000 Series a powerful mid-range debug solution.
- “We believe the 7000 Series is simply the most powerful and affordable mid-range oscilloscope in the market,” continues Michael Rizzo. “With category leading performance, robust analysis tools, and a next gen UI, delivered at a starting price of only $3347 CAD, we encourage customers considering the MDO3000 from Tektronix or the DSOX3000T from Keysight to compare the performance, features and overall value of the RIGOL 7000 Series Oscilloscope.”
- The 7000 Series is available and shipping now. There are 8 Models (100MHz, 200MHz, 350MHz, and 500Mhz) with or without the Logic Analyzer (MSO). Pricing Starts at just $3347 CAD. Learn more about the RIGOL 7000 Series Digital Oscilloscope at WWW.RIGOLcanada.com.
|
 |
|
