Portable & Handheld Instruments
NEO Messtechnik PQA 8000 – Mobile Power Quality Analyzer
The NEO PQA8000 reflects our understanding of power grid applications of today – the most complete and reliable mobile Analyzer you will find on the market. Multi-Touch, 4 hours mobile operation and complying with Power Quality Standards and Grid Codes your measurement application requires. Class A Power Quality Analyzer for measurements and analyses way beyond EN50160.
The only instruments in the world measuring Supraharmonic currents and voltages up to 500 kHz.
NEO Messtechnik PQA 7000 – Mobile Power Quality Analyzer
The NEO PQA7000 is the complete package mobile power quality analyzer. Featuring Multi-Touch, 6 hours mobile operation and complying with Power Quality Standards and Grid Codes your measurement application requires. Class A Power Quality Analyzer for measurements and analyses way beyond EN50160.

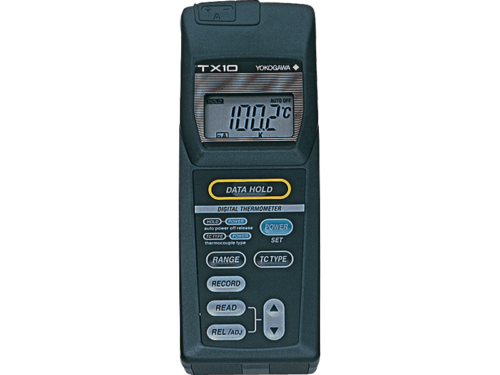

Yokogawa TX10 Digital Thermometers
TX10 Series offers thermocouple thermometers that support K, J, E and T type thermocouples.
There are three models available:
- 1-channel single-function
- 1-channel multi-function
- 2-channel multi-function models.
AEMC CA7024 – Fault Mapper Model
- Hand-held
- Detects opens & shorts
- Measure cable length up to 6000 ft (2000m)
- Automatic cable impedance compensation
AEMC CA7027 – Fault Mapper Pro
- Identify and locate faults on power & communication cables, given access to one end only
- Measures cable length and indicates the length and distance to cable faults to a range of 9 ft (3 m) to 19,000 ft (6000m)
- Works with virtually any type of cable
AEMC CA7028 – Wire Mapper Pro
- Indicates all common wiring faults including split pairs, shorts, opens, reversed pairs and crossed wires
- Unique graphical and digital display of fault information and length
- Indicates distances to opens and shorts and identifies locations
- Built-in tone generator for tracing and locating cables
AEMC DTR Model 8510 – Digital Transformer Ratiometer
Digital transformer ratiometer for on-site testing of power, potential, and current transformers. Measures primary to secondary turns ratio, polarity, and excitation current. Automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity.

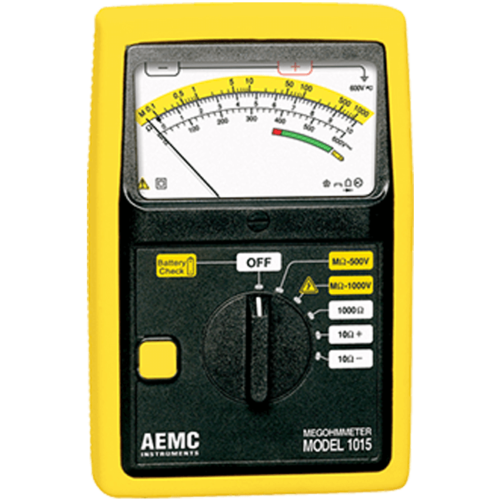

AEMC Model 1015 – Megohmmeter
Performs insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω. Megohm log scale graduated from 0.1 to 1000MΩ. Ohm scale is linear with a range from 0 to 10Ω. Can be used for a broad range of plant and field service applications and is designed for use in harsh environments.

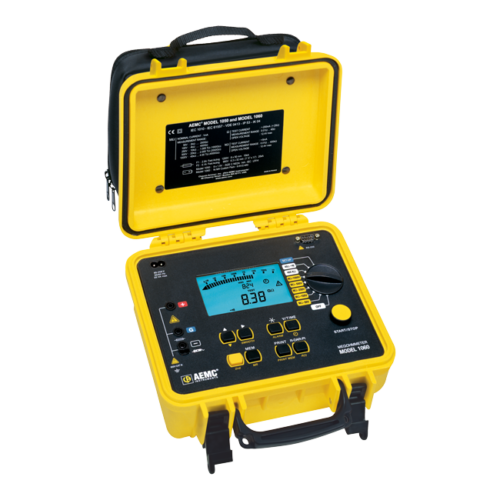

AEMC Model 1060 – Megohmmeter
Measures insulation resistance to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement, and duration of test. Memory function enables storage of test results. RS-232 interface allows connection to a computer running DataView® for configuring the instrument and downloading test results and generating reports.

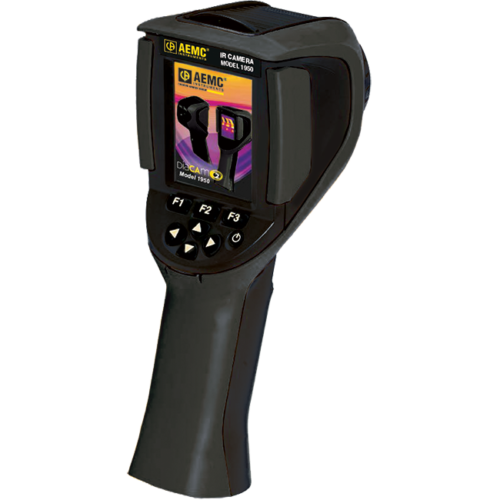

AEMC Model 1950 – Thermal Imaging IR Camera
- Focus free imaging, automatic brightness control
- 320 x 240 pixel 2.8” color display
- Exceptional 13 hour battery life < 3ms
- Captures thermal & digital images simultaneously
- Programmable trigger & cursor, configurable emissivity table
