Showing 1–10 of 16 results

Accuenergy Acuvim II – High Performance Power Meters

Quality engineered energy submeters provides a simple robust solution for power monitoring, power quality analysis, kWh metering, system integration, controlling power distribution systems & other speciality applications.

Accuenergy Acuvim IIBN – BACnet Power Meter

  • Revenue Grade 0.2 class accuracy
  • Built-in BACnet-IP Protocol for integration with BAS and other monitoring and control systems
  • BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA)
  • Built-in mobile-friendly web server for real-time meter reading and configuration
  • Secure access to meter via HTTPs encrypted webpage

Accuenergy AcuDC 240 Series – DC Power Meters

  • Backlight on-board LCD display
  • Optional MODBUS RTU communications
  • Optional digital and analog I/O
  • Optional relay output
  • Optional data logging
  • Get optional alarm notification
  • Standard DIN size for easy installation

Accuenergy Acuvim-L – Economical Power Meters

  • Six different models for different applications
  • NEMA 4 rated tough and watertight design
  • 3-Line LCD display with backlight
  • Multiple current transformer options
  • Class leading 5-year warranty
  • Built-in MODBUS RTU (some models)
  • Optional digital/analog I/O or PROFIBUS (some models)
  • Optional DIN rail mount transducer (some models)

Accuenergy Acurev 1310 Series – Utility Revenue Grade Accuracy

  • Utility Revenue Grade Accuracy – IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
  • Multiple CT Input Options compatible with any CT: 5A/1A, 333mV, Flexible Rogowski Coil, 80/100/200mA
  • 4 Channel current input including neutral current measurement
  • Residual current measurement available
  • 10-690Vac direct voltage input, fits all voltage rating system with one model
  • RS-485 port built-in with Modbus-RTU and BACnet MS/TP, standard integration with most systems
  • Standard Din-rail mount for ease-of-installation
  • Compatible with both 50Hz and 60Hz systems
  • Built-in energy pulse output and alarm output
  • Optional relay output for alarm and remote control
  • Tamper-proof design approved for revenue applications

Accuenergy AcuRev 2000 Series – Revenue Approved Power Meters

  • 18 channels for 18 single phase or 6 three phase circuits
  • Revenue grade standard ANSI C12.20 class 0.5 and IEC 62053-22 class 0.5s
  • External current transformers for retrofit applications
  • Optional Direct Current input for new installation
  • Built-in MODBUS RTU via RS485 for integration
  • Built-in data logging for historical recording
  • Over/under limit alarms for demand control
  • Support protocols Modbus-TCP/IP, SMTP, HTTP/HTTPS Post, FTP & SNTP
  • Support 15-second interval datalogging and data post
  • Supports FTP server built-in for datalogging storage and retrieval
  • Support SNMP V2 and SNMP trap
  • Built-in Ethernet and WiFi communication
  • Secure and encrypted HTTPs Webserver for meter reading and configuration
  • Two-tier user management system to provide efficient monitoring and access
  • Optional free cloud-based metering data storage

Accuenergy AcuPanel 9100 Series – Pre-Wired Meters in Enclosure

  • Factory pre-wired for fast, reliable installation
  • Factory pre-configuration eliminates meter programming on-site
  • Required accessory components all pre-installed
  • Self-powered panel meter enclosure does not require separate power supply
  • Durable enclosures provide high tolerance for external force

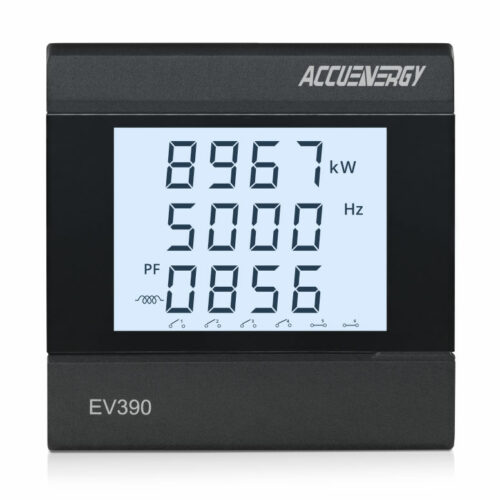

Accuenergy EV300 Series – Economy Multifunction Power Meter

  • Utility Revenue Grade Accuracy IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
  • Bi-directional Energy Metering
  • Utility Revenue Grade Accuracy
  • Field Configurable 5A/1A CT Input
  • RS485 port Built-in with Modbus-RTU
  • Standard Panel Mount 96mm DIN- Direct Retrofit
  • Switch Status Monitoring and Controlling
  • Energy Pulse Output
  • 4-20mA Analog Transducer Output
  • Over/Under Limit Alarm-triggered Relay Output
  • Lowest Cost in the Same Class Guaranteed

ITECH IT9100 Series – Power Meters

The IT9100 power meter can provide the maximum input of 1000 V and 50 A and measurement bandwidth of 100 KHz, and can be easily used for measuring voltage, current, power, frequency, harmonics and other parameters. The standard configuration includes USB, RS232 and LAN communication interfaces and also interfaces for USB-based peripheral devices. Users can save the measured parameters into the external storage medium. The basic voltage and current accuracy is 0.1%. Moreover, the power meter has rich integrating functions, such as the active power. It is widely applied in test of motors, household appliances, UPS, etc.

Buy Online

Sifam Tinsley Alpha 20 – Multifunction Power Meter

  • Measures important electrical parameters in 3 phase 4 Wire and 3 phase 3 Wire Networks
  • True RMS measurement – measures distorted waveform up to 15th harmonic
  • Limit Switch control (optional)
  • 3 Line 4 Digits ultra bright LED Display (up to 9999)
  • On site Programmable CT/PT Ratios
  • User selectable CT Secondary 1A/5A
  • User selectable PT Secondary from 100 VLL to 500 VLL
  • Storage of MIN / MAX values
