Electro-Meters offers a wide catalog of meter relays and controllers that provide you with the solution you need for your electronic equipment. A meter relay uses a switched output to control a process or operate an external device. We offer a variety of panel meters and controllers to perform today’s control applications, including temperature displays, digital panel meters, and bargraph meters. We offer models from the Hsian Cheng Electric Corporation, Texmate, and Yokogawa lines of products, with digital panel meters that are cULus approved. If you need any assistance in finding the right meter relay or controller for your needs, contact our team of experts at Electro-Meters today.

Showing 1–10 of 25 results

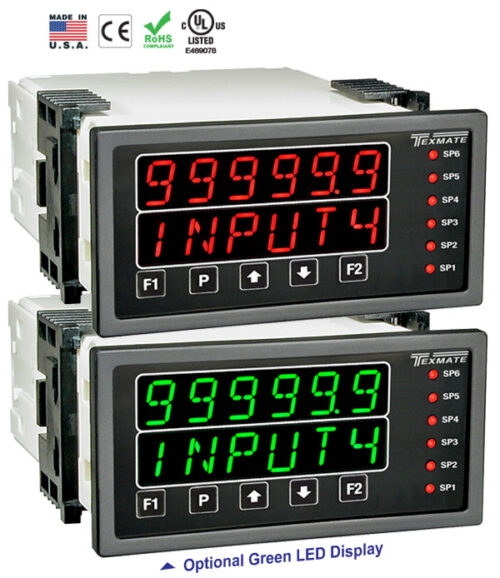

Texmate DI-602AE & DI-602AT5C Tiger Series – Programmable Meter Controllers

  • 96x48mm
  • 6 Digit x 2 Display Digital Controllers
  • Red, green, or superbright red 7-segment, 0.56” high LEDs with full support for seven segment alphanumeric text.
  • Range: -199999 to 999999
  • Modular construction
  • Front panel controls
  • Up to 4 “smart” input channels

Texmate DI-50E & DI-50T Tiger Series – Programmable Meter Controllers

  • 96x48mm
  • 5 Digit Display Controllers
  • Red, green, or superbright red 7-segment, 0.56” high LEDs with full support for seven segment alphanumeric text
  • Range: -19999 to 99999 counts
  • Modular construction
  • Front panel controls
  • Up to 4 “smart” input channels

Texmate DL-40JANUS Leopard Series – Digital Panel Meters

  • 96x48mm
  • 4 Digit LED display
  • Range: -1999 to 9999
  • Three-button programming from the front panel
  • Three front panel selectable ranges.
  • Four-level brightness control of digital display, and setpoint LEDs.
  • Three programmable setpoints.
  • Relay activation can be selected to occur above (HI) or below (LO) each setpoint.
  • Hysteresis setting for all three setpoints. Delay on make and delay on break for SP1 and SP2.
  • Peak and Valley. View and Reset.

Hsiang Cheng SMDA – DC Current Meter Relays

  • Multi-turn Potentiometer setting
  • Dual Hi & Lo setting
  • Wide input parameters & ranges
  • Output with adjustable time delayer
  • 4 digits up to 9999 counts

Hsiang Cheng SMDV – Voltage Meter Relays

  • Multi-turn Potentiometer setting
  • Dual Hi & Lo setting
  • Wide input parameters & ranges
  • Output with adjustable time delayer
  • 4 digits up to 9999 counts

Hsiang Cheng SME – DC Process Relay Meters

  • Multi-turn Potentiometer setting
  • Dual Hi & Lo setting
  • Wide input parameters & ranges
  • Output with adjustable time delayer
  • 4 digits up to 9999 counts

Hsiang Cheng SMT – Temperature Relay Meters

  • Multi-turn Potentiometer setting
  • Dual Hi & Lo setting
  • Wide input parameters & ranges
  • Output with adjustable time delay
  • 4 digits up to 9999 counts

Hsiang Cheng SMV – AC Voltage Meter Relays

  • Multi-turn Potentiometer setting
  • Dual Hi & Lo setting
  • Wide input parameters & ranges
  • Output with adjustable time delayer
  • 4 digits up to 9999 counts

Texmate BL-40 Leopard Series – Digital Relay Meters

  • 96x24mm
  • 4 Digit Display
  • Range: -1999 to 9999
  • Three-button programming from the front panel
  • Three front panel selectable ranges
  • Four-level brightness control of digital display, and setpoint LEDs
  • Three programmable setpoints
  • Relay activation can be selected to occur above (HI) or below (LO) each setpoint
  • Hysteresis setting for all three setpoints. Delay on make and delay on break for SP1 and SP2
  • Peak and Valley. View and Reset
  • Auto-sensing AC/DC Power Supply. For Voltages Between 85-265VAC/95-300VAC (PS1) or 15-48VAC/10-72VDC
  • One 9 amp form C and one 4 amp form A relay, or up to three 4 amp form A relays are available

Texmate BL-B51D40 Leopard Series – Bargraph Meters

  • 96x24mm
  • Range: -1999 to 9999
  • 4 Digit LED display
  • 51 segment bargraph
  • Bargraph center zero function.
  • Four programmable setpoints.
  • Setpoint 1 has delay-on-make and delay-on-break plus a special “pump on pump off” mode that creates a Hysteresis Band between SP1 and SP2.
  • Relay activation can selected to occur above or below (Lo) each setpoint.
  • Digital display blanking.
  • Decimal point setting.
  • Four-level brightness control of the bargraph digital display.
