Monarch illumiNova Fixed Mount LED Stroboscope
The illumiNova fixed mount LED stroboscopic inspection systems are designed for continuous use in high speed applications requiring crisp, clear, stop motion quality inspection. The extraordinarily bright LED’s provide an ultra uniform white spectrum light. Available in a six inch model or one foot lengths up to 8 feet, with 3 different lens options to ensure you will have light coverage for any job. The powerful on board intuitive digital controller allows the user to quickly set flash rates, flash duration, brightness levels and many other advanced features. Flash rates can also be triggered remotely using machine mounted sensors connected directly to illumiNova’s digital input or use the optional remote controller to extend the operating distance up to 100 feet.
Monarch P5-11 Proximity Sensor
1-60,000 RPM. The P5-11 Proximity Sensor is a rugged industrial 2 wire probe style inductive sensor. It can be used 0.2 inches (5mm) from a 0.5 inch (12mm) metallic target such as a bolt head or shaft locking key.
Monarch PS-12 Proximity Sensor
1-24,000 RPM. The PS-12 Proximity Sensor is a rugged industrial 3-wire probe-style inductive sensor. It can be used up to 0.15 inch (4 mm) from a 0.5 inch (12 mm) metallic target such as a bolt head or shaft locking key. Includes a red LED on-target indicator.
Monarch RLS Rugged Laser Sensor
We’ve taken our hugely popular Remote Optical Laser Sensor (ROLS) and packaged it in a Rugged 316L SS IP67 rated enclosure. Although optical speed sensors require atmospheres that are clean and free of mist, steam, dirt, oil and other contaminants in order to function properly there are times when contamination can occur accidentally. The RLS utilizes a water tight M12 connector that facilitates easy removal for cleaning. With an operating range of up to 25 feet, the RLS can be used in applications where close proximity isn’t convenient or safe. The laser light source makes setup incredibly easy.
Monarch Nova-Strobe Stroboscope
The Monarch Nova‐Strobe LED family of rugged industrial stroboscopes provide an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30‐500,000 flashes per minute covers all applications.
Monarch Nova-Pro Stroboscope/Tachometer
The Nova-Pro™ is a series of powerful portable visual inspection and speed measurement tools. We have combined all the features of our hand held LED stroboscopes together with a full function laser tachometer to create a compact, ergonomic and extremely powerful two in one predictive maintenance tool. The stroboscope light source is made up of twelve LED’s which are extraordinarily bright yet extremely efficient allowing cool continuous operation and long lasting rechargeable battery. Continuous operation is also possible with the optional AC adapter.
Monarch Instruments ACT-1B – Panel Mount Tachometer
- 1/8 DIN sized
- 5-digit LED display
- 5 to 99,999 RPM range
- Universal sensor inputs
Monarch Instruments ACT-3X – Panel Mount Tachometer
- 1/8 DIN sized
- 5-Digit LED display
- 5 to 999,990 RPM range
- NIST Traceable Certificate of Calibration included
Monarch Instruments DataChart DC1250 – 2 Channel Paperless Recorder
- 5 button keypad (dual function buttons)
- Two alarm outputs: 30V 0.5A Form A relays
- Display modes: Trending (horizontal), Large dual digital display, mixed mode)

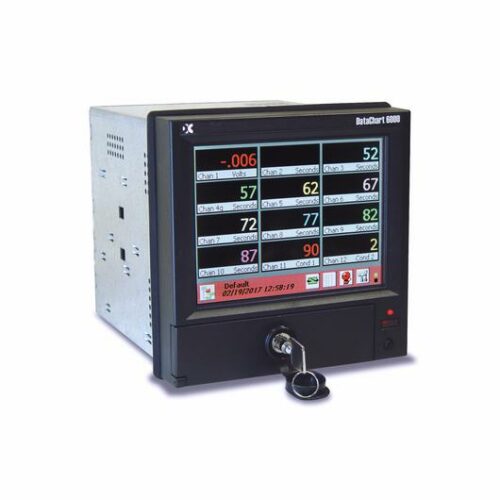

Monarch Instruments DataChart DC6000 – Advanced Paperless Data Acquisition System
Contact us to discuss alternate solutions.
- 6 or 12 universal inputs
- Up to 4 pulse/frequency inputs
- 6 or 12 relay outputs
- Networkable using the standard Ethernet port
- 21 CFR part 11 compliant (available option)
- IP65 rated front panel
- 24 V dc transmitter power supply
- Onboard Media Drives: Compact Flash, USB memory stick or external drive, Smart Digital (SD)
- Touch Screen Control
- Direct on-screen chart annotation with integral stylus
- Built-in OPC and web server
- Built-in email client
- Shallow installation depth (6.5″)
