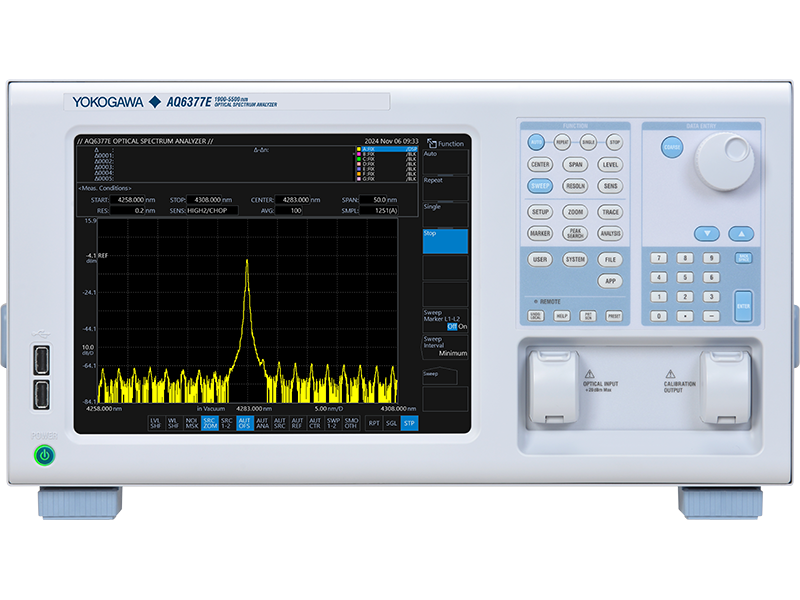

Yokogawa AQ6377E – Five Micron Optical Spectrum Analyzers
- Long wavelength range: 1900 to 5500 nm
- Gas purging ports to reduce water vapor effects
- Built-In cut filter for high order diffracted light
- Double Speed Mode to further enhance fast measurement speed
- High sensitivity down to -65 dBm
- High resolution to 0.1 nm
- Wide close-in dynamic range (55dB)
- Fast auto-calibration
- Free space optical input for maximum flexibility, low maintenance, and high reliability
- Applicable to single-mode and multimode fibers
- Excellent performance for environmental gas sensing Laser Spectroscopy
- Indispensable tool for R&D and manufacturing of optical devices in the wavelength range from telecom band to 3.4μm
Description
The AQ6377E is engineered for precise and efficient mid-wave infrared (MWIR) measurements across a wide 1900–5500 nm wavelength range. Expanding on the trusted performance of the AQ6377, the AQ6377E delivers improved speed, sensitivity, and advanced features to support the growing needs of cutting-edge laser applications such as environmental monitoring, gas detection, and photonics research.
Popular applications include the detection of gases such as carbon oxides (COx), nitrogen oxides (NOx), and hydrocarbon gas (CxHy) for environmental studies.
Additional information
Approvals | SPE-1000 |
---|
