Siglent SDM4065A Series – Digital Multimeter
- Real 6½ digits readings resolution (2,200,000 counts)
- Up to 50k rdgs/s of measurement speed
- 512 MB RAM, capable of saving up to 2M readings for caching
- Equipped with EasyDMM-X host computer control and sampling software
- 5-inch true color TFT-LCD display
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description

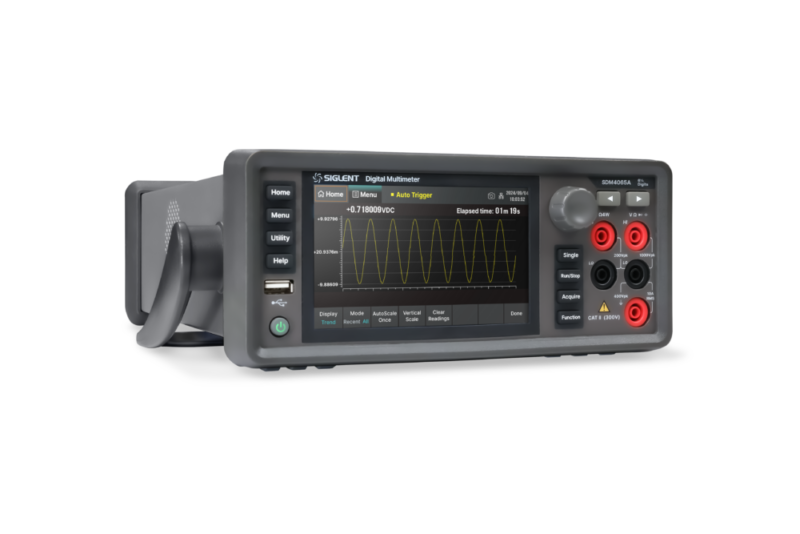

The SDM4065A is a 6½-digit digital multimeter featuring exceptional measurement accuracy and a touch-sensitive screen. It is designed to meet the demands of high-precision, multifunctional, and automated measurement applications.
Features
- 5-inch true color TFT-LCD display (800 × 480 resolution) with touchscreen and redesigned user interface
- Real 6½-digit (2,200,000 count) measurement resolution
- Measurement speed up to 50,000 readings/second, with sampling intervals ranging from 100 PLC to 0.001 PLC
- 512 MB RAM supports caching up to 2 million readings with timestamp support
- 256 MB NAND Flash for storing readings, images, and configuration files
- Four trigger modes: Auto, Single, External, and Level Trigger
- Four display modes: Numerical, Bar Meter, Trend Chart, and Histogram
- DC measurements support auto-zero function
- True-RMS measurement for AC Voltage and AC Current
- Automatic switching between 10 A (high) and 3 A (low) current modes; supports up to 30 A with external shunt
- Supports RTD, thermocouple, and user-defined sensors
- Dual display and probe hold functionality
- Supports standard SCPI remote control commands
- Bundled with EasyDMM-X host control and data acquisition software

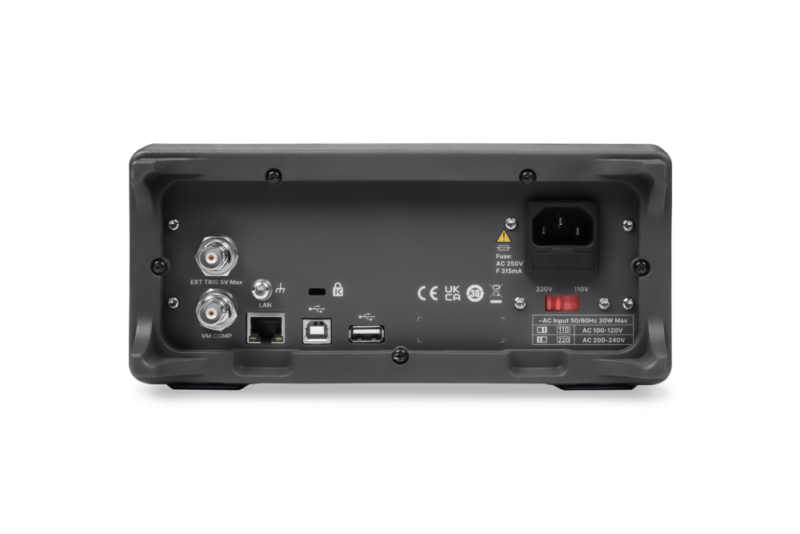

- Communication interfaces: USB Device (optional USB-GPIB adapter), USB Host, and LAN
- Supports BNC VMC output and trigger input
- Remote access via VNC and built-in web server
- Multilingual menu (Chinese/English) with built-in help system for easy information retrieval
Additional information
| Manufacturers | |
|---|---|
| Approvals |
cTUVus |
