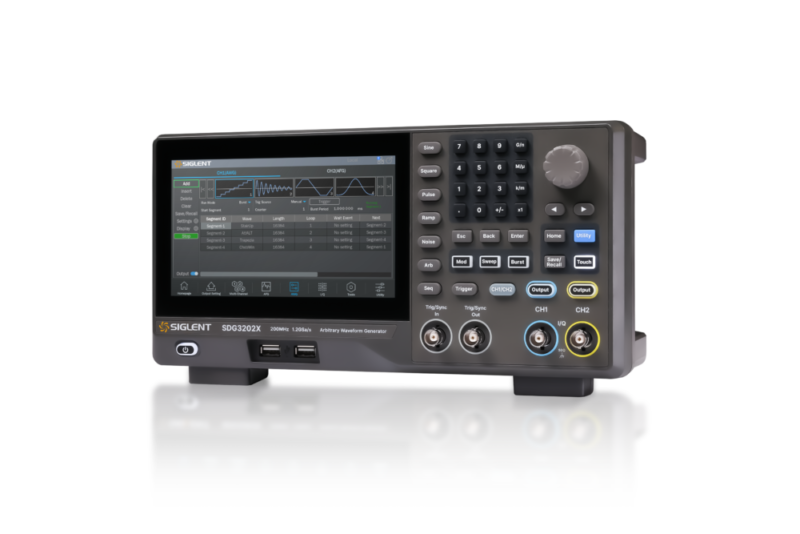

Siglent SDG3000X – Arbitrary Waveform Generator

  • Maximum output amplitude 20 Vpp
  • Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonic function
  • Waveform Combining function
  • 196 built-in arbitrary waveforms
  • Built-in WebServer supports instrument control via web browser
  • 7-inch display touch screen

SEND US A MESSAGE

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    CONTACT INFORMATION

    900 McKay Road, Unit 2
    Pickering, Ontario
    Canada, L1W 3X8

    Phone: (905) 428-3413
    Toll Free: (800) 617-3413

    sales@electro-meters.com

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    Description

    The SDG3000X series is a dual-channel function and arbitrary waveform generator offering up to 200 MHz bandwidth. It features a high-performance sampling system with a 1.2 GSa/s sampling rate and 16-bit vertical resolution. While based on traditional DDS technology, it incorporates innovative TrueArb and EasyPulse technologies to address the typical limitations of DDS in generating arbitrary waveforms and square/pulse signals. These enhancements enable the SDG3000X to deliver high-fidelity, low-jitter signal outputs. Additionally, it supports PRBS pattern generation, sequencing, dual-pulse, and vector signal outputs, making it suitable for a wide range of applications.

    Features:

    • Dual channels, maximum output frequency of 200 MHz, and up to 20 Vpp output amplitude
    • 1.2 GSa/s sampling rate with 16-bit vertical resolution
    • TrueArb technology for point-by-point arbitrary waveform output with low jitter (10 mSa/s ~ 600 MSa/s)
    • Sequence wave playback supported, with up to 40 Mpts waveform memory per channel
    • EasyPulse technology enables low-jitter square/pulse wave output with fine control over width and edges
    • Dual pulse output function for evaluating dynamic characteristics of power devices
    • Supports PRBS (Pseudo-Random Binary Sequence) up to 120 Mbps
    • Extensive modulation capabilities: AM, DSB-SC, FM, PM, FSK, ASK, PSK, PWM
    • Sweep and Burst functionality
    • Harmonic and waveform combining functions
    • High-precision frequency counter
    • 196 built-in arbitrary waveforms

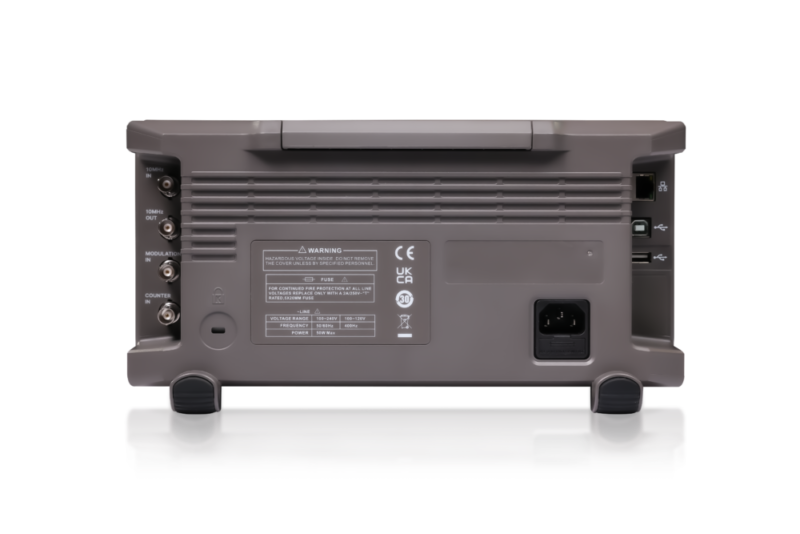

    • Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11); optional GPIB
    • Built-in WebServer allows control via web browser
    • 7-inch touchscreen display
    Additional information
    Manufacturers

    Models

    SDG3082X

    ,

    SDG3162X

    ,

    SDG3202X

    Downloads

    Datasheets
