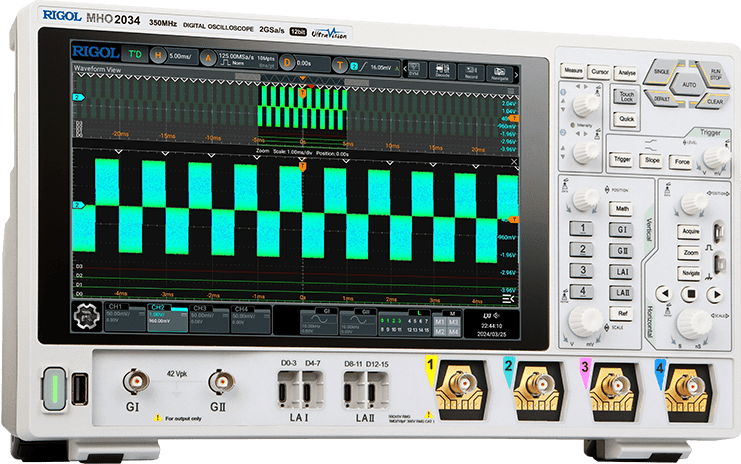

Rigol MHO2000 Series – High Resolution Digital Oscilloscopes

Key Features

• Built on RIGOL’s advanced, self-developed Centaurus technical platform
• High-resolution 12-bit architecture
• Up to 350 MHz bandwidth, featuring 4 analog channels and 1 external trigger input
• Includes 16 digital channels (logic analyzer probe sold separately)
• Real-time sampling rate up to 2 GSa/s
• Maximum memory depth of 500 Mpts
• Vertical sensitivity as low as 200 μV/div
• Waveform capture rate up to 1,000,000 wfms/s in fast acquisition mode
• Integrated Arbitrary/Function Waveform Generator (AFG)[2], power analysis, histogram, digital signal analysis, Bode plot, and protocol decoding capabilities
• Powerful search and navigation tools for efficient signal anomaly detection and localization
• 256-level intensity grading with digital real-time phosphor technology
• 10.1″ high-resolution (1280×800) capacitive touchscreen
• Newly designed Flex Knob for enhanced user interaction
• Standard I/O options: USB Device, USB Host, LAN, and HDMI
• Battery-powered option for portable, on-the-go measurements
• Supports online firmware upgrades
• Equipped with a photoelectric encoder knob for improved durability and long-term reliability

The MHO2000 Series is a high-resolution, 4-channel digital oscilloscope tailored for the mainstream market, addressing a wide range of design, debugging, and testing needs. Built on RIGOL’s next-generation, self-developed Centaurus platform, it offers a waveform capture rate of up to 1,000,000 wfms/s (in fast recording mode), 500 Mpts of memory depth, and 12-bit resolution. With an outstanding noise floor and high vertical measurement accuracy, it meets the demands of precision testing. The MHO2000 also features integrated support for an Arbitrary/Function Generator (AFG), digital signal analysis, Bode plotting, and more. Battery-powered operation makes it ideal for use in diverse and complex testing environments.
