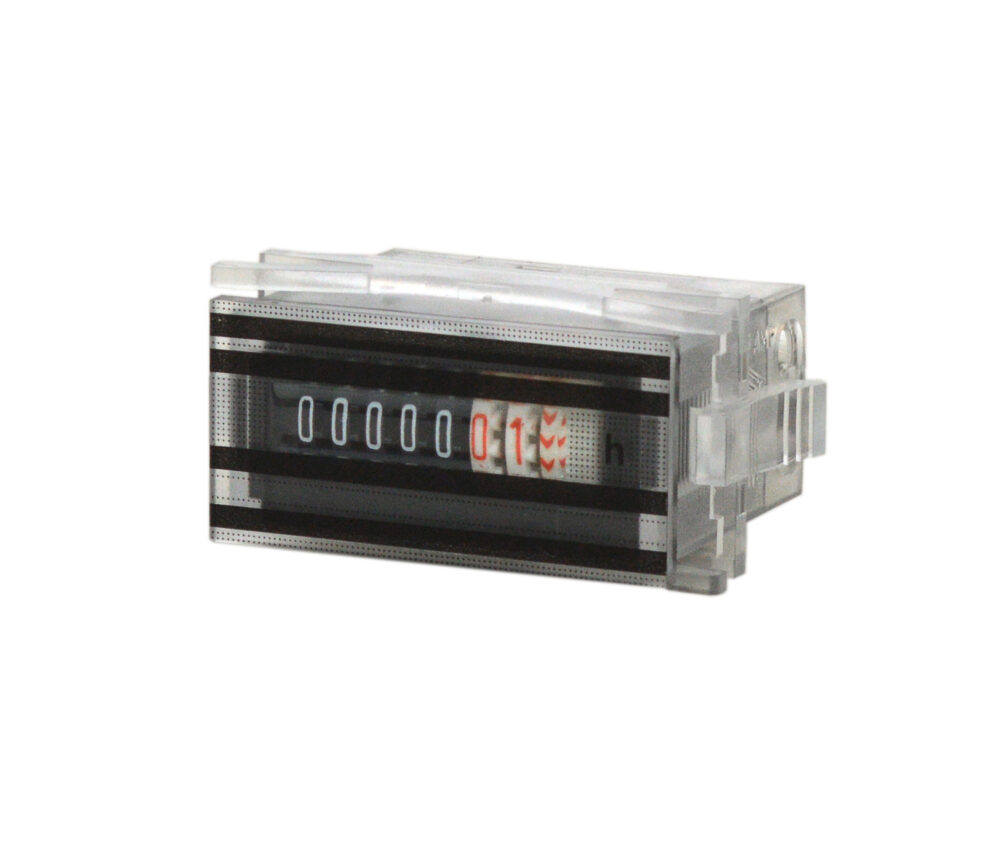

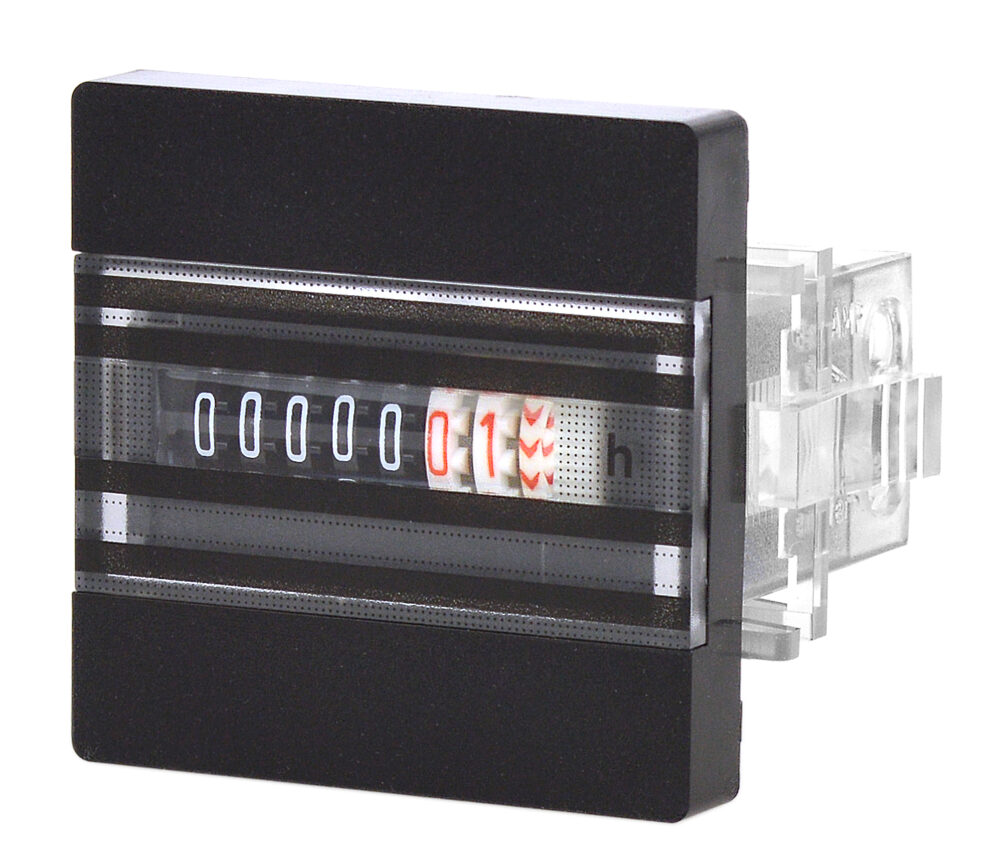

Electro-Meters Elapsed Time Meter
- Display: 7 digits (0 … 9999.99h)
- Reset: None
- Digit Height: 5mm
- Input Voltage: 24VAC – 230VAC
- Approvals: UL; E 130453 (M)
- Protection Class (IEC 144): Front IP66; screw terminals IP20, AMP connectors IP00
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
The Electro-Meters Elapsed Time Meters are elapsed time meters engineered to track operating hours, warranty periods, and maintenance schedules for electrically powered machines and equipment. Typical applications include business machines, compressors, power drives, generators, battery-powered vehicles, electric furnaces, refrigeration systems, and both farm and industrial machinery.
Built to perform in demanding environments, the Y Series meters feature robust protection against dust and moisture, with IP66 front protection, along with a wide operating temperature range.
| Display | 7-digit, 0 … 99999.99 h |
| Digit Height | 5 mm, visual |
| Supply Voltage (Vop) | According to order information ±10% (e.g., 230 VAC ±15%) |
| Power Consumption | 0.7 VA (AC) or max. 750 mW (DC) |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Electrical Connection | Screw terminals (max. 2.5 mm² cables) and AMP connector (6.3 × 0.8 mm) |
| Mounting | Installation frame (included) |
| Mounting Position | Roller axis horizontal |
| Protection Class | Front: IP66; Screw terminals: IP20; AMP connectors: IP00 (per IEC 144) |
| Vibration Stability | 30 m/s² (10–500 Hz) per IEC 068-2-6 |
| Shock Stability | 800 m/s² (6 ms) per IEC 068-2-27 |
| Weight | Approx. 50 g |
| Approvals | UL Listed: E130453 (M) |
| Reset | None |
Additional information
| Approvals | UL Recognized Component |
|---|
