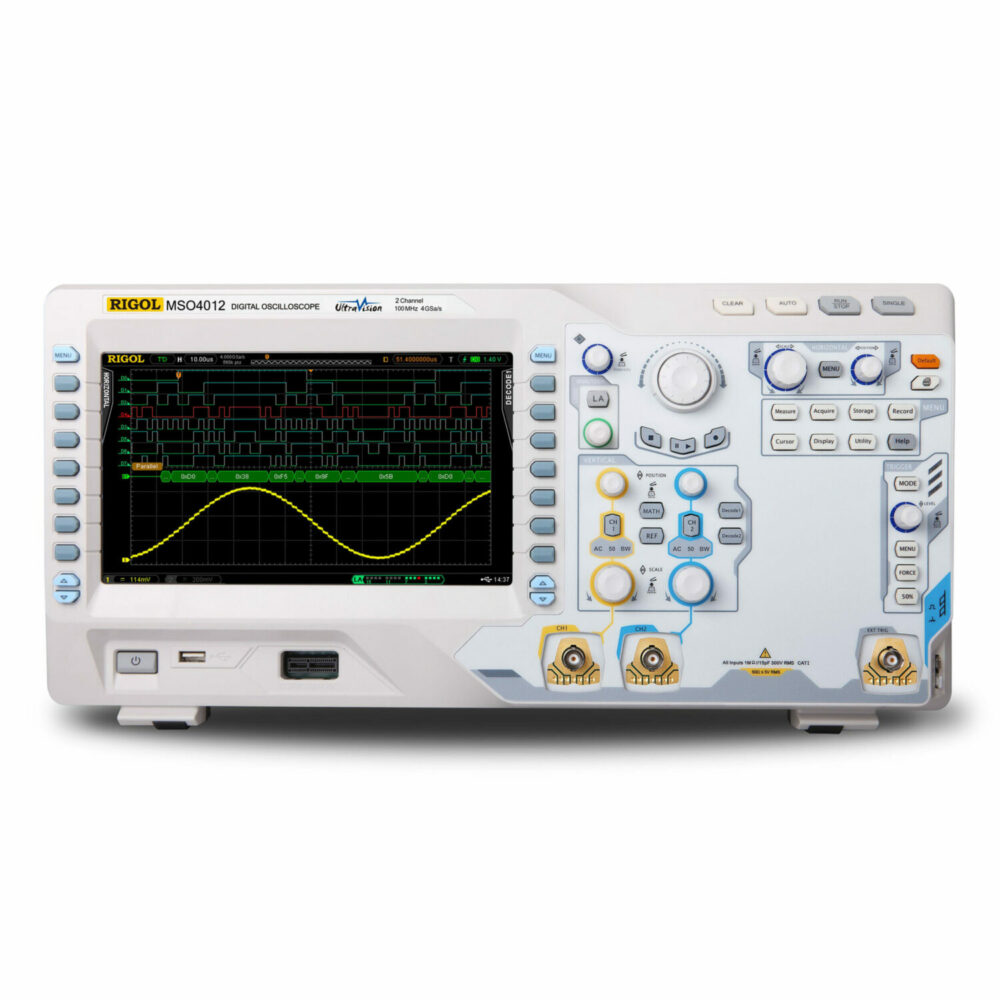

Rigol MSO/DS4000 Series – Digital Oscilloscopes
- Bandwidth 100-500 MHz
- Sample Rate Analog channel up to 4 GSa/s
- Standard Memory depth: Analog channel up to 140 Mpts
- 2 or 4 Analog Channels
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
The DS4000 series digital oscilloscope is a versatile, high performance oscilloscope that incorporates many of today’s most advanced technologies and processes. Featuring bandwidths between 100MHz and 500MHz, sample rates up to 4GSa/s and up to 4 analog channels, the DS4000 is ideal for a wide variety of markets including communications, defense, aerospace, industrial electronics, R&D and educational fields.
Features
- Bandwidth 500MHz, 350MHz,200MHz,100MHz
- Sample Rate Analog channel up to 4 GSa/s
- Standard Memory depth: Analog channel up to 140 Mpts
- 2 or 4 Analog Channels,
- Waveform capture rate Up to 110,000 waveforms per second
- Real Time Waveform Record, Replay & Analysis(Std. up to 200,000 frames)
- Lower noise floor, the Min. vertical sensitivity – 1mV/div
- Innovative “UltraVision” technology
- A variety of Trigger functions
- Support serial bus trigger(Std.) and decoding(Opt.) for both analog and digital channels
- Complete Connectivity: USB Host& Device, LAN(LXI-C), VGA, AUX,USB-GPIB(Opt.)
- 9 inch WVGA(800X480), 256 level intensity grading display
Additional information
| Model | DS4014E, DS4012, DS4014, DS4042E, DS4022, DS4024, MSO4012, MSO4014, MSO4022, MSO4024, DS4032, DS4034, DS4052, MSO4032, DS4054, MSO4034, MSO4052, MSO4054 |
|---|---|
| Approvals | cTUVus |
