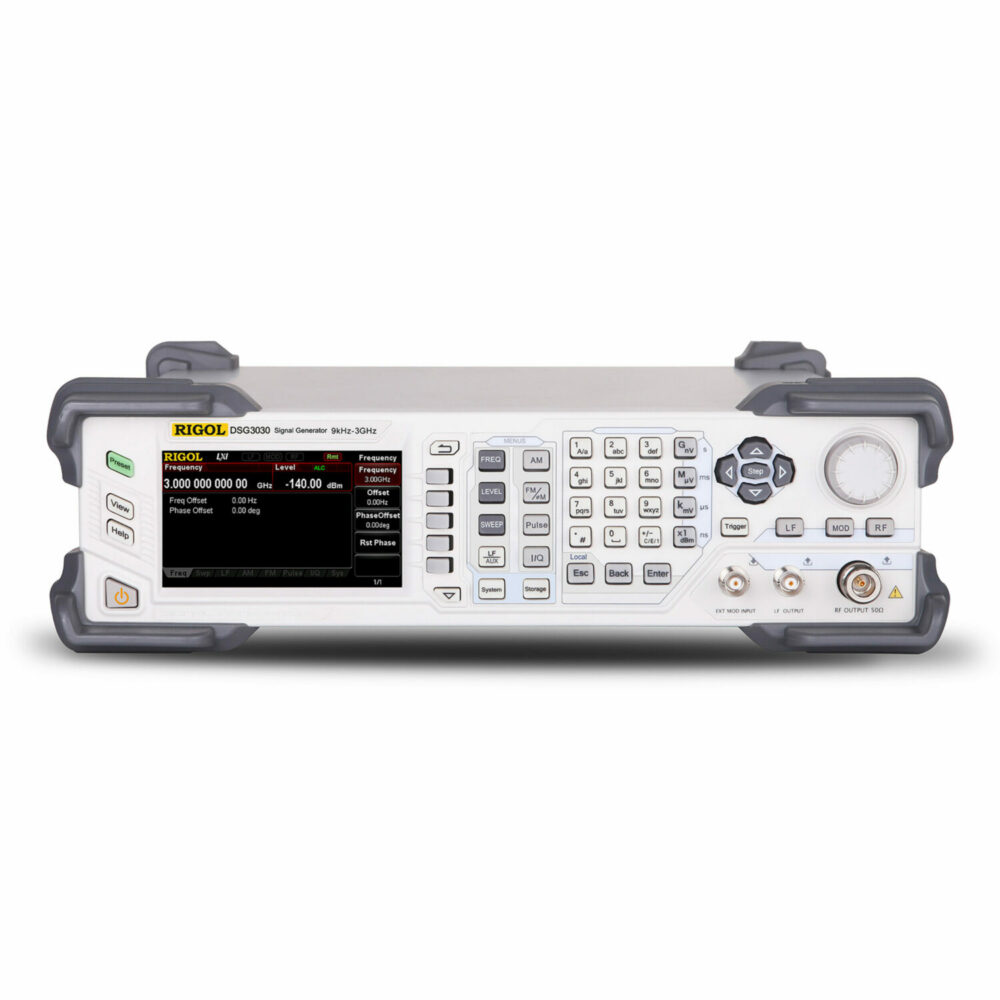

Rigol DSG3000 Series – RF Signal Generators
Notice: This product has been discontinued.
Replaced by: DSG800
Replaced by: DSG800
- Maximum Frequency of 3-6 GHz
- Up to -110 dBc/Hz (typical) phase noise
- Up to +13 dBm (typical) maximum output power
- Higher level of amplitude accuracy, up to 0.5 dB (typical)
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
The DSG3000 Series offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output. The DSG3060 has a maximum frequency of 6 GHz. Featuring a high signal purity with phase noise measuring <-110dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +25dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of <0.5dB (typical).
Features
- The highest frequency: 3 GHz/6 GHz
- Amplitude accuracy: <0.5dB (typical)
- Output amplitude range: -130 dBm to +13 dBm
- High signal purity, phase noise: <-110dBc/Hz@20kHz (typical)
- Standard 0.5ppm internal clock; 5ppb high stable clock for option
- Standard AM/FM/ΦM analog modulation
- Standard pulse modulation; on/off ratio up to 80dB;
- pulse train generator for option
- I/Q modulation and I/Q baseband output
- All modulations support internal and external modulation modes
Additional information
| Model | DSG3030, DSG3060 |
|---|---|
| Approvals | cTUVus |
