Electronic Loads AC Electronic Loads Preen PEL Series – Regenerative AC Electronic Load
Preen

Preen PEL Series – Regenerative AC Electronic Load

  • Constant current (CC), constant resistance (CR) and constant power (CP) modes to simulate power factor from 0.3 to 1.0 (lead / lag)
  • Recycles power back to grid with efficiency greater than 90%
  • High power factor in grid connected side: up to 0.99
Contact Us

SEND US A MESSAGE

    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    CONTACT INFORMATION

    900 McKay Road, Unit 2
    Pickering, Ontario
    Canada, L1W 3X8

    Phone: (905) 428-3413
    Toll Free: (800) 617-3413

    sales@electro-meters.com

    Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.

    Downloads
    Categories: AC Electronic Loads, Electronic Loads
    Share:
    • Description
    • Additional information
    • Downloads
    Description

    The PEL Series is an AC electronic load with regenerative function. Traditional resistive AC loads transfer the energy to heat which is dissipated. PEL not only transfers energy back to the grid and reduces the energy consumption, but also provides more accurate control and measurement for load simulation. PEL employs the most advanced PWM rectification (active rectification) technology with four-quadrant operation and digital signal processor technology (DSP). It not only can simulate different load characteristics including resistance and inductive type, but also can feed energy back to the grid, which lowers energy consumption and improves carbon dioxide emissions.

    Applications: Burn-in tests, production line and laboratory applications to replace the traditional resistive type AC load bank.

    • Constant current (CC), constant resistance (CR) and constant power (CP) modes to simulate power factor from 0.3 to 1.0 (lead / lag)
    • Recycles power back to grid with efficiency greater than 90%
    • High power factor in grid connected side: up to 0.99
    • Can be paralleled for larger capacity demands
    • Three-phase independent control to set voltage of each phase
    • Adjustable parameters including PF, current, power, resistance etc.
    • Touch screen display for easy operation
    • Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with over 20 corresponding error codes and event log for easier troubleshooting
    • Standard RS485 communication interface
    • Latest patented power module with high power density and swappable design for better reliability and serviceability
    Additional information
    Approvals

    SPE-1000

    Downloads
    • Preen PEL Series - Regenerative AC Electronic Load Datasheet

    Related products

    Rigol DL3000 Series – Precision DC Electronic Loads

    Electronic Loads, DC Electronic Loads

    ITECH IT8700 Series – Multi-channel DC Electronic Loads

    Electronic Loads, DC Electronic Loads

    ITECH IT8000 Series – Regenerative DC Electronic Loads

    Electronic Loads, DC Electronic Loads

    ITECH IT-M3300 Series – Regenerative DC Electronic Loads

    Electronic Loads, DC Electronic Loads

    ITECH IT-M3600 Series – Regenerative Power System

    Power Supplies, DC Bidirectional Power Supplies, DC Power Supplies, Electronic Loads

    ITECH IT8500+ Series – Programmable DC Electronic Loads

    Electronic Loads, DC Electronic Loads

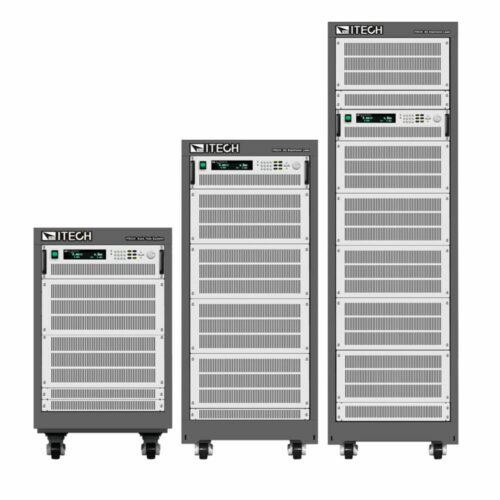

    ITECH IT8900 Series – LED Test Programmable DC Electronic Loads
