Click to enlarge

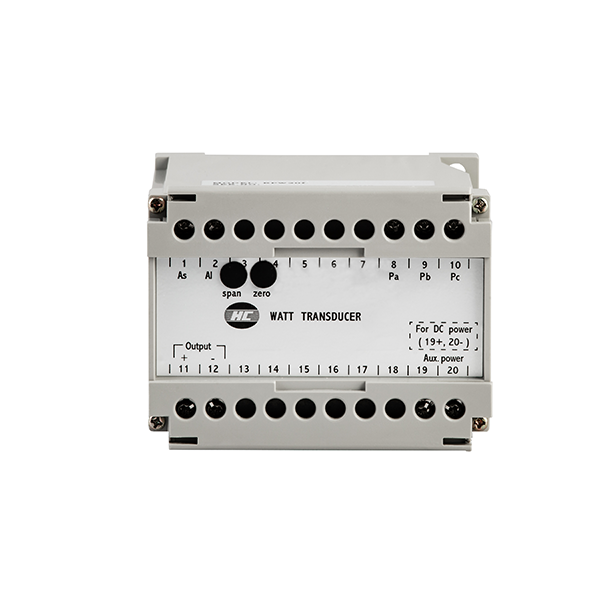

Power Transducers Hsiang Cheng RPW – Watt Transducers
Hsiang Cheng Electric Corporation

Hsiang Cheng RPW – Watt Transducers

  • The RP series are DIN-case electrical power transducers designed for general industry applications
  • Manufactured to strict compliance IEC 688
  • The input & output parameters are pre-selected from a wide range of industry compatible signals and other non-stated ranges are available on request or as options
  • Well-proven applied circuitries, fully ensuring long-term stability
  • Small sized DIN case for space saving
  • Protective touch-proof terminals and enclosure meeting requirements of VBG4 & VDE 0106 part 100 (Germany)
  • High performance & stability of less than 100 ppm drift per ÂșC change
  • High impulse & surge protection of up to 5KV (RMS) meeting IEC 255-4
  • Perfect for mounting on DIN rail
Downloads
Categories: Power Transducers, Power, Voltage, & Current Transducers
Share:
  • Description
  • Additional information
  • Downloads
Description

RPW conforms to the design of the IEC 688 transducer which can resist surges, providing dielectric protection, and provide reliable and stable signal conversion. Able to be installed on DIN-EN 50022/BS5584 rails.

RPW200 is the three phase three wire balance watt (active) transducer. Its dimension are 70.3 x 100 x 115.5 mm.
RPW201 is the three-phase three-wire unbalance watt (active) transducer. Its dimension are 70.3 x 100 x 115.5 mm.
RPW301 is the three phase four wire unbalance watt (active) transducer. Its dimension are 70.3 x 100 x 115.5 mm.

Additional information
Model

RPW200, RPW201, RPW301

Approvals

SPE-1000

Downloads
  • Hsiang Cheng RPW - Watt Transducers Datasheet
