Hsiang Cheng RPK – Var Transducers
- The RP series are DIN-case electrical power transducers designed for the general industries applications.
- Manufactured to strict compliance IEC 688.
- The input & output parameters are pre-selected from a wide range of industry compatible signals and other non-stated ranges are available on request or as options.
- Well-proven applied circuitries, fully ensuring long-term stability.
- Small sized DIN case for space saving.
- Protective touch-proof terminals and enclosure meeting requirements of VBG4 & VDE 0106 part 100 (Germany).
- High performance & stability of less than 100 ppm drift per ºC change
- High impulse & surge protection of up to 5KV (RMS) meeting IEC 255-4

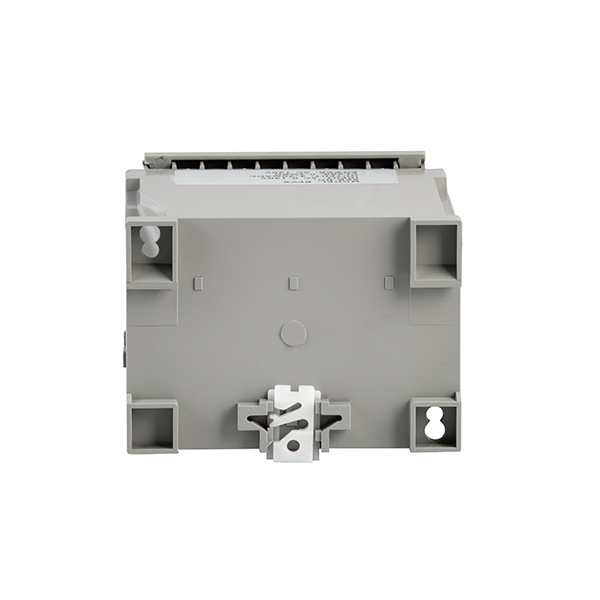

- Perfect for mounting on DIN rail
SEND US A MESSAGE
CONTACT INFORMATION
Do you have questions about how we can help your company? Send us an email and we’ll get in touch shortly.
Description
RPA conforms to the design of the IEC 688 transducer, which can resist the invasion of the surge and the dielectric protection of the case, and provide a reliable and stable signal conversion.

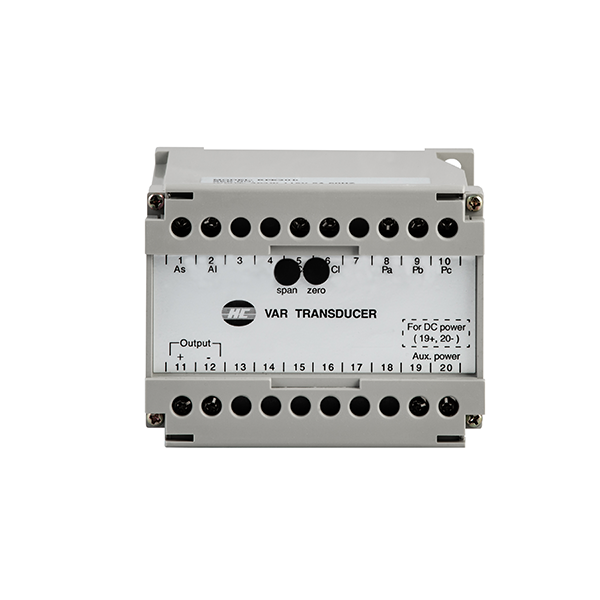

RPK201 is the three phase three wire unbalance var (reactive) transducer. Its dimension is 70.3 x 100 x 115.5 mm. The installation of RPK201 conforms to DIN-EN 50022/BS5584 Rail Fixing.

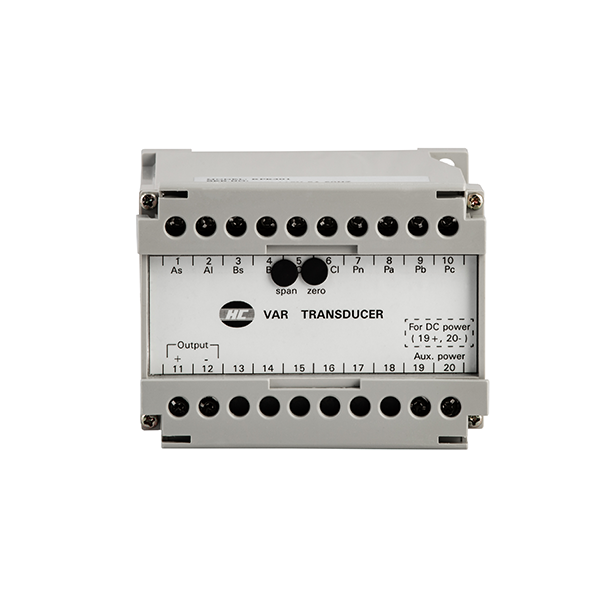

RPK301 is the three phase four wire unbalance var (reactive) transducer. Its dimension is 70.3 x 100 x 115.5 mm. The installation of RPK301 conforms to DIN-EN 50022/BS5584 Rail Fixing.
Additional information
| Model | RPK201, RPK301 |
|---|---|
| Approvals | SPE-1000 |
