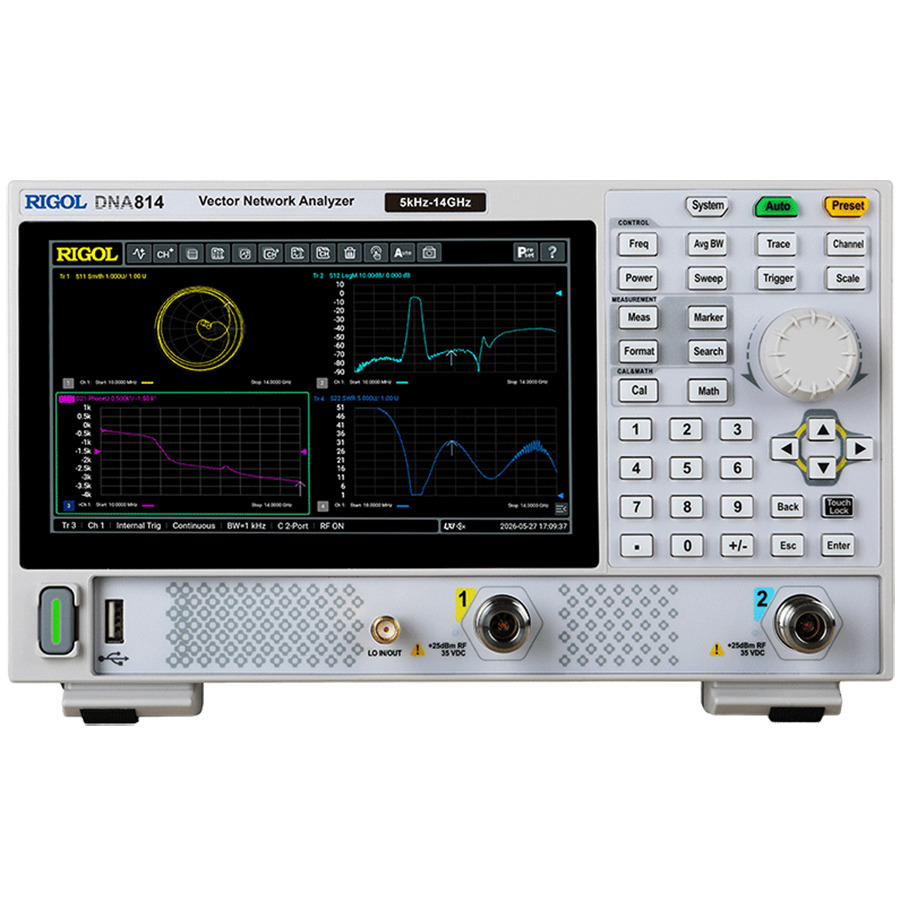

Rigol DNA800 Series – Vector Network Analyzer

The DNA800 Series Vector Network Analyzer offers a comprehensive range of calibration methods, including frequency response, single-port, response isolation, enhanced response, full two-port, and electronic calibration. It supports multiple display formats, including log magnitude, linear magnitude, SWR, phase, group delay, Smith chart, and polar chart.

Through its USB, LAN, and HDMI interfaces, the DNA800 Series enables accurate measurement and analysis of microwave network characteristics, including amplitude versus frequency, phase versus frequency, and group delay.

Combining high-end performance with a compact and lightweight design, the DNA800 Series delivers low-noise operation and an intuitive display and software interface for an enhanced user experience. It is well suited for R&D and production applications across electronics, communications, and microwave engineering.

Features

• Frequency Range: 5 kHz to 14 GHz
• Number of Ports: 2
• Frequency Resolution: 1 Hz
• Maximum Output Power: 10 dBm
• High Dynamic Range: 125 dB (typ.)
• Trace Noise: 0.005 dB_rms
• IF Bandwidth: 1 Hz to 3 MHz
• Compatible with mechanical and electronic (ECal) calibration kits, supporting multiple calibration
  types, including SOLT, Response Short, Response Open, OSL, Enhanced Response 1 to 2, and
  Response Through
• Integrated measurement functions including S-parameters, impedance, VSWR, TDA,
  fixture embedding/de-embedding, antenna testing, and more
• Portable Design: Compact and lightweight with a built-in handle; dimensions of
  265.35 mm (W) × 161.75 mm (H) × 77.38 mm (D) and a weight of 1.9 kg
• Display: 7-inch 1024 × 600 HD touchscreen
• Interfaces: LAN, USB Device, USB Host, and HDMI
• Supports standard SCPI command sets
• Supports Web Control for remote operation
• Supports both physical-key and touchscreen operation, with external keyboard and mouse support
  for convenient value entry
