- True RMS single-, two- and three-phase measurements at 256 samples/cycle, plus DC
- Real-time color waveforms
- Easy-to-use on-screen setup
- Automatic current probe recognition and scaling
- True RMS voltage and current measurement
- Measures DC volts, amps and power
- Displays and captures voltage, current and power harmonics to 50th order, including direction, in real-time
- Captures transients down to 1/256th of a cycle
- Stores comprehensive data base of logged data
- Phasor diagram display
- VA, var and W per phase and total
- kVAh, varh and kWh per phase and total
- Neutral current calculated and displayed for three-phase
- Transformer K-factor display
- Power Factor, displacement PF display
- Captures up to 51 transients
- Short term flicker display
- Phase unbalance (current and voltage)
- Harmonic Distortion (total and individual) from 1st to 50th
- Alarms, surges and sags
- Screen snapshot function captures waveforms or other information on the display
- Includes FREE DataView® software for configuring data storage, real-time display, analysis and report generation

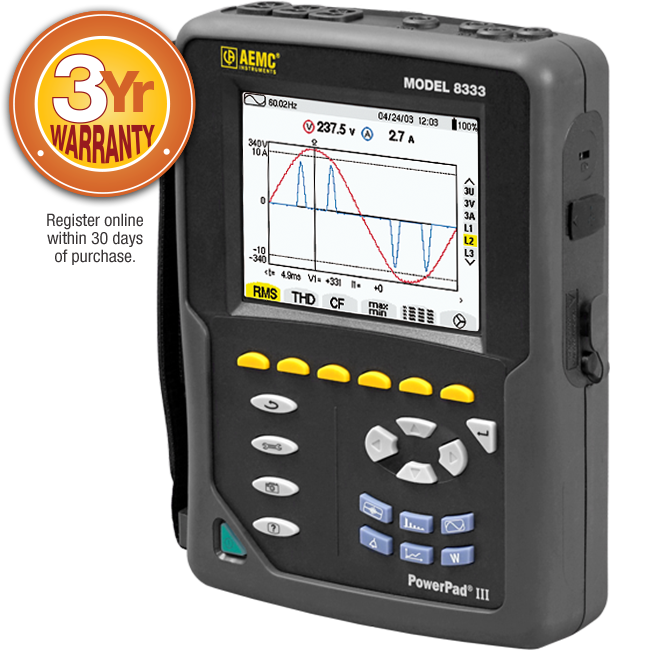

AEMC PowerPad III Model 8333 – Power Quality Analyzer
The PowerPad® III Model 8333 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on single- or three-phase networks. Three current and four voltage input terminals are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
Description
Additional information
| Model | 2136.10, 2136.11, 2136.12 |
|---|---|
| Approvals | SPE-1000 |
