- Measures power transformers, VT/PTs, and current transformer CT turns ratios
- Direct turns ratio readings from 0.8000:1 to 8000.0:1
- Tests performed by exciting the primary and reading the secondary; provides safer conditions for the operation
- Displays turns ratio, excitation current, winding polarity and % deviation from the nameplate values
- Internal NiMH battery packs provide up to 10 hours of continuous operation
- Smart/fast battery charger with universal input voltage (100-24V, 50-60Hz) charges batteries in less than 4 hours
- Display warns of incorrect lead connection, reverse polarity, open and short circuits
- Includes DataView® analysis software for configuring, downloading, storing, and report generation of test data

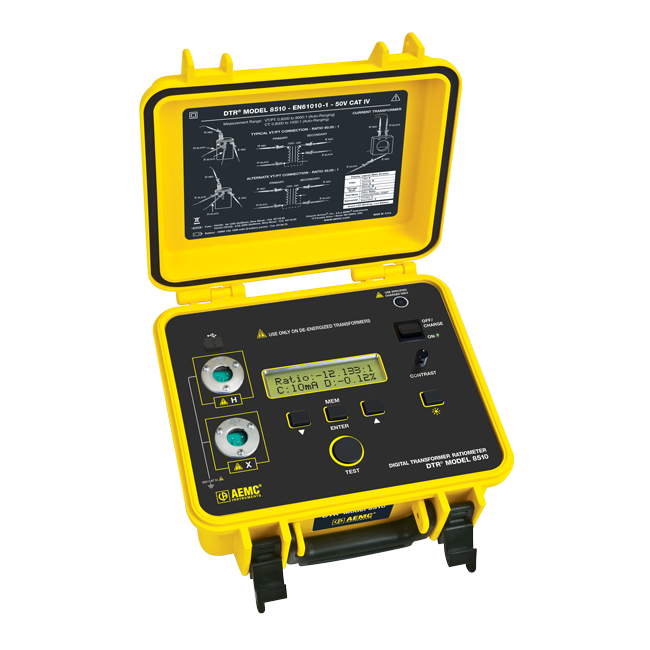

AEMC DTR Model 8510 – Digital Transformer Ratiometer
Digital transformer ratiometer for on-site testing of power, potential, and current transformers. Measures primary to secondary turns ratio, polarity, and excitation current. Automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity.
Description
Additional information
| Model | 2136.5 |
|---|
