• Built on RIGOL’s advanced, self-developed Centaurus technical platform
• High-resolution 12-bit architecture
• Up to 350 MHz bandwidth, featuring 4 analog channels and 1 external trigger input
• Includes 16 digital channels (logic analyzer probe sold separately)
• Real-time sampling rate up to 2 GSa/s
• Maximum memory depth of 500 Mpts
• Vertical sensitivity as low as 200 μV/div
• Waveform capture rate up to 1,000,000 wfms/s in fast acquisition mode
• Integrated Arbitrary/Function Waveform Generator (AFG)[2], power analysis, histogram, digital signal analysis, Bode plot, and protocol decoding capabilities
• Powerful search and navigation tools for efficient signal anomaly detection and localization
• 256-level intensity grading with digital real-time phosphor technology
• 10.1″ high-resolution (1280×800) capacitive touchscreen
• Newly designed Flex Knob for enhanced user interaction
• Standard I/O options: USB Device, USB Host, LAN, and HDMI

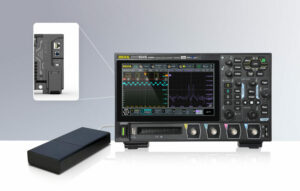

• Battery-powered option for portable, on-the-go measurements
• Supports online firmware upgrades
• Equipped with a photoelectric encoder knob for improved durability and long-term reliability

The MHO2000 Series is a high-resolution, 4-channel digital oscilloscope tailored for the mainstream market, addressing a wide range of design, debugging, and testing needs. Built on RIGOL’s next-generation, self-developed Centaurus platform, it offers a waveform capture rate of up to 1,000,000 wfms/s (in fast recording mode), 500 Mpts of memory depth, and 12-bit resolution. With an outstanding noise floor and high vertical measurement accuracy, it meets the demands of precision testing. The MHO2000 also features integrated support for an Arbitrary/Function Generator (AFG), digital signal analysis, Bode plotting, and more. Battery-powered operation makes it ideal for use in diverse and complex testing environments.

The post Rigol MHO2000 Series – High Resolution Digital Oscilloscopes appeared first on Electro-Meters.

Key Features

• 12-bit Resolution across all models
• Bandwidth: Up to 1 GHz
• Channels: 8 analog, 1 external trigger
• Digital Channels: 16 (requires purchase of logic analyzer probe for MHO models)
• Real-Time Sample Rate: Up to 4 GSa/s
• Memory Depth: Max 500 Mpts
• Vertical Sensitivity: As low as 100 μV/div
• Waveform Capture Rate: Up to 1,000,000 wfms/s in fast recording mode
• Advanced Analysis Tools: Includes Arbitrary Waveform/Function Generator (AFG), power analysis, histograms, digital signal analysis, Bode plot, and protocol decoding
• Search & Navigation: Efficiently locates signals with exceptions
• Display: 10.1” 1280×800 high-definition touch screen with 256-level intensity grading and real-time digital fluorescence technology
• User Interface: Enhanced Flex knob for improved usability
• Connectivity: USB Device, USB Host, LAN, HDMI interfaces standard on all models
• Power Supply: Battery-powered, allowing for flexibility in measurement locations
• Durability: Equipped with a photoelectric encoder operating knob for longevity
• Online Upgrades for added functionality

The MHO/DHO5000 series delivers exceptional accuracy, with high waveform capture rates, deep memory, and a low-noise floor to meet complex testing requirements. Battery operation and comprehensive features make it ideal for a variety of demanding test environments.

The post Rigol MHO5000 Series – High Resolution Digital Oscilloscopes appeared first on Electro-Meters.

Key Features

• 12-bit Resolution across all models
• Bandwidth: Up to 1 GHz
• Channels: 8 analog, 1 external trigger
• Digital Channels: 16 (requires purchase of logic analyzer probe for MHO models)
• Real-Time Sample Rate: Up to 4 GSa/s
• Memory Depth: Max 500 Mpts
• Vertical Sensitivity: As low as 100 μV/div
• Waveform Capture Rate: Up to 1,000,000 wfms/s in fast recording mode
• Advanced Analysis Tools: Includes Arbitrary Waveform/Function Generator (AFG), power analysis, histograms, digital signal analysis, Bode plot, and protocol decoding
• Search & Navigation: Efficiently locates signals with exceptions
• Display: 10.1” 1280×800 high-definition touch screen with 256-level intensity grading and real-time digital fluorescence technology
• User Interface: Enhanced Flex knob for improved usability
• Connectivity: USB Device, USB Host, LAN, HDMI interfaces standard on all models
• Power Supply: Battery-powered, allowing for flexibility in measurement locations
• Durability: Equipped with a photoelectric encoder operating knob for longevity
• Online Upgrades for added functionality

The MHO/DHO5000 series delivers exceptional accuracy, with high waveform capture rates, deep memory, and a low-noise floor to meet complex testing requirements. Battery operation and comprehensive features make it ideal for a variety of demanding test environments.

The post Rigol DHO5000 Series – High Resolution Digital Oscilloscopes appeared first on Electro-Meters.

DG5000 Pro Series Function/Arbitrary Waveform Generator

The DG5000 Pro Series is a powerful, multi-functional dual-channel waveform generator designed for flexible and precise testing, combining multiple generator functions into a single, compact unit.

Key Specifications

• Dual-channel Output: Electrically isolated from the ground
• Sampling Rate: Up to 2.5 GSa/s
• Maximum Output Frequency: 500 MHz
• Vertical Resolution: 16-bit for high accuracy
• Square Wave Frequency: Up to 170 MHz, with a minimum rise time of 0.8 ns
• Pulse Frequency: Up to 120 MHz, with a minimum pulse width of 4.2 ns
• Harmonics: High-order harmonic generator (up to 20th order)
• Arbitrary Waveform Length: Standard 64 Mpts/CH, with an optional upgrade to 128 Mpts/CH
• Additional Options: Sequence, IQ, Multi-pulse, Pattern, and Multi-tone functions
• Battery Option: Optional battery holder available for convenient field operation
• Display: 10.1″ HD touch screen with simultaneous dual-channel waveform configuration
• Remote Access: Standard Web Control functionality for easy remote collaboration

Overview

Equipped with a maximum 2.5 GSa/s sample rate and a 64 Mpts/CH memory depth (expandable to 128 Mpts/CH), the DG5000 Pro Series brings together a Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, and both Analog/Digital Modulation. With support for battery-powered operation, it is an adaptable and cost-effective choice for comprehensive waveform generation in both laboratory and field environments.

The post Rigol DG5000 Pro Series – Arbitrary Waveform Generators appeared first on Electro-Meters.

Features

• Max. sample rate: 625 MSa/s
• Max. output frequency: 50 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 2 Mpts/CH (8 Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order) • Independent signal frequency measurement channel with a max. frequency of 500 MHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
• Standard Web Control function for easier remote cooperation

The post Rigol DG800 Pro Series – Arbitrary Waveform Generators appeared first on Electro-Meters.

Features

• Max. sample rate: 1.25 GSa/s
• Max. output frequency: 200 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 16 Mpts/CH (32 Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 500 MHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
• Standard Web Control function for easier remote cooperation

The post Rigol DG900 Pro Series – Arbitrary Waveform Generators appeared first on Electro-Meters.

This multimeter comes equipped with USB and LAN interfaces as standard, along with the Web Control function, enabling direct instrument control for a seamless user experience. The inclusion of a Type-C interface for power charging enhances its versatility. Despite its robust features, the DM858 boasts a compact size and supports attachment to a bracket, effectively saving valuable bench space for engineers.

Features

• Max. reading rate: 125 readings/s
• Up to 500,000 points logging memory to record and analyze more data
• 5½-digit reading resolution
• True-RMS AC Voltage and AC Current measuring
• Built-in 10 groups of data storage and 10 groups of setup storage
• Strong Math functions, supporting various application protocols
• 7” color touch screen, displaying dual-measurement results concurrently
• Type-C interface for power charge; compact in size, freeing up your bench space
• Standard USB and LAN interfaces, supporting Web Control

The post Rigol DM858 Series – Digital Multimeters appeared first on Electro-Meters.

This series is a fresh addition to the economical digital oscilloscope lineup, specifically crafted to cater to the diverse needs of the widespread mainstream digital oscilloscope market. It serves as a reliable solution for design, debugging, and testing requirements in this field.

Features

• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 25 Mpts
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7″ (1024×600) capacitive multi-touch screen
• Brand new Flex Knob brings a user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Novel and delicate industrial design, easy to operate
• Unique online upgrade

The DHO800 is extraordinarily compact while still remaining incredibly feature rich. When compared to the DHO1000, the difference in size is easily noticed.

DHO800 vs DHO1000

DHO800 vs Standard Notebook

The small form factor easily allows the DHO900 to be used as a portable handheld instrument that can be powered by a battery bank.

The post Rigol DHO800 Series – Compact High Performance Digital Oscilloscopes appeared first on Electro-Meters.

The DHO900 series also provides support for 16 digital channels, allowing for comprehensive analysis of both analog and digital signals, making it well-suited for embedded design and testing scenarios. What sets it apart is that it offers access to features such as auto serial and parallel bus analysis, bode plot analysis, and various other functions typically found in higher-end instruments. All of this comes at an affordable price point similar to that of an entry-level instrument, making it an ideal choice for meeting testing requirements in fields such as research and development, education, and scientific research.

Features

• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analog bandwidth of 250 MHz, 4 analog channels
• 16 digital channels (std.), logic probe required to be purchased if needed
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 50 Mpts
• Vertical sensitivity range: 200 μV/div to 10 V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7″ (1024×600) capacitive multi-touch screen
• Brand new Flex Knob brings a user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Novel and delicate industrial design, easy to operate
• Unique online upgrade

The DHO900 is extraordinarily compact while still remaining incredibly feature rich. When compared to the DHO4000, the difference in size is easily noticed.

DHO900 vs DHO4000

DHO900 vs Standard Notebook

The small form factor easily allows the DHO900 to be used as a portable handheld instrument that can be powered by a battery bank.

The post Rigol DHO900 Series – Compact High Resolution Digital Oscilloscopes appeared first on Electro-Meters.

The UltraVision II technical platform introduces several noteworthy features, including a higher waveform capture rate, comprehensive digital trigger technology, and full memory hardware measurement technology. Moreover, the MSO8000A series digital oscilloscope combines multiple instrument modules such as MSO, arbitrary waveform generator, digital voltmeter, 6-digit counter and totalizer, and protocol analyzer. This integration of diverse functionalities provides users with an exceptional experience at an unprecedented price point.

Features

• 12 bit resolution
• Up to 10 GSa/s real-time sample rate
• Up to 500 Mpts memory depth (standard)
• High waveform capture rate (over 600,000 waveforms per second)
• Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
• Integrates 7 independent instruments into 1
• Analog bandwidth: 750 MHz, 1.5 GHz, and 2 GHz (single-channel and half-channel modes)
  • Upgradable, up to 3 GHz
• 10.1-inch capacitive multi-touch screen. 256-level intensity grading display, with color persistence
• Web Control and VNC remote command
• Waveform histogram analysis (standard)
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function

The post Rigol MSO8000A Series – Mixed Signal Oscilloscopes appeared first on Electro-Meters.
