AEMC
AEMC is the industry leader in current probes, ground resistance testers and insulation resistance testers. AEMC’s full product line also includes clamp-on meters, ratiometers, power meters, harmonic power meters, data loggers, lightmeters and numerous other electrical test tools.

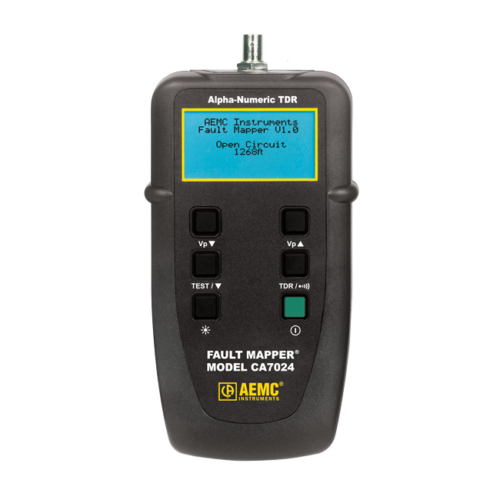

AEMC CA7024 – Fault Mapper Model
- Hand-held
- Detects opens & shorts
- Measure cable length up to 6000 ft (2000m)
- Automatic cable impedance compensation

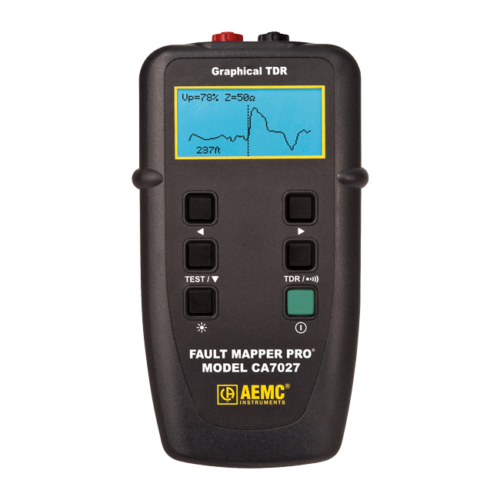

AEMC CA7027 – Fault Mapper Pro
- Identify and locate faults on power & communication cables, given access to one end only
- Measures cable length and indicates the length and distance to cable faults to a range of 9 ft (3 m) to 19,000 ft (6000m)
- Works with virtually any type of cable

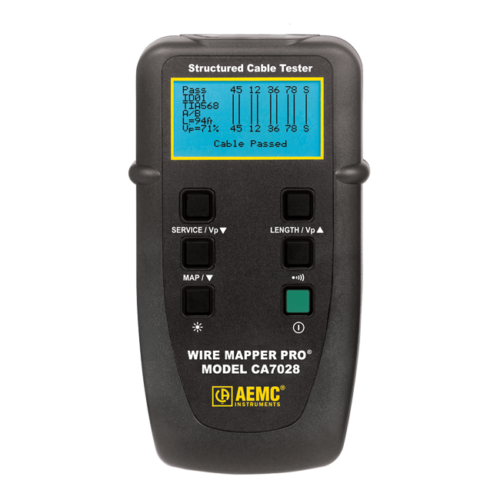

AEMC CA7028 – Wire Mapper Pro
- Indicates all common wiring faults including split pairs, shorts, opens, reversed pairs and crossed wires
- Unique graphical and digital display of fault information and length
- Indicates distances to opens and shorts and identifies locations
- Built-in tone generator for tracing and locating cables

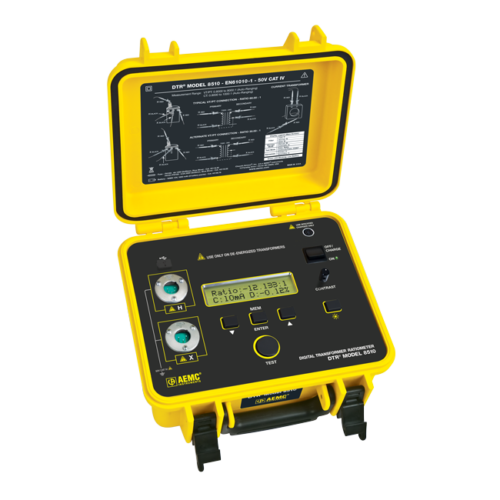

AEMC DTR Model 8510 – Digital Transformer Ratiometer
Digital transformer ratiometer for on-site testing of power, potential, and current transformers. Measures primary to secondary turns ratio, polarity, and excitation current. Automatically self-calibrates and checks for open windings/connections/circuit breakers, short circuits (excess excitation current), incorrect test lead placement, and reverse polarity.

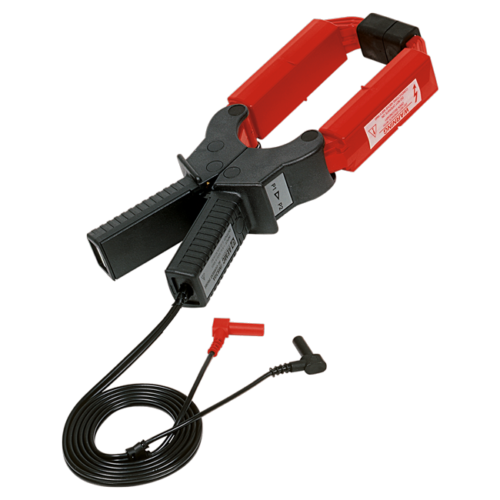

AEMC JM800 Series – AC Current Probes
- Current output: up to 3000AAC (continuous cycle for the full temperature range)
- designed for use on DMMs, power and harmonic, meters, recorders or instruments with AC current ranges

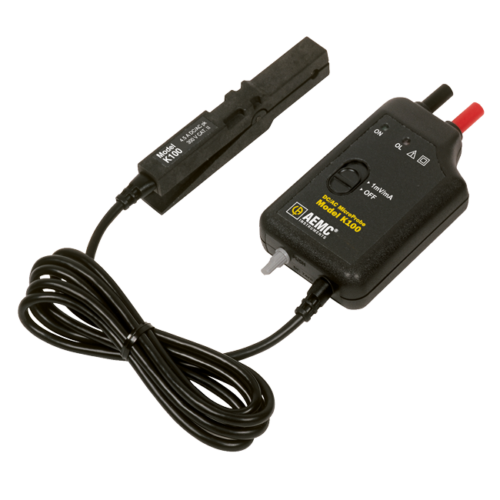

AEMC K Series – DC/AC MicroProbes
- Measures extremely low level DC from 100uA
- Outputs signal proportional to total current (DC+AC)
- Low noise
- Ultra-compact size and non-contact clamp-on convenience
- Simple plug-in operation
- Designed for use with digital multimeters and oscilloscopes
- No range or mode (AC/DC) switching required
- CE mark

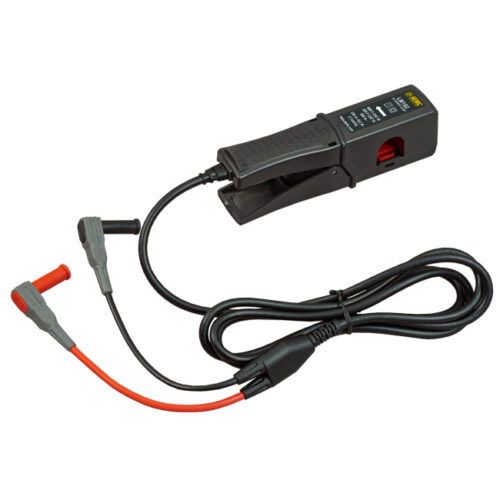

AEMC LM Series – AC Current Probes
- Clamping diameter 0.63″ (16mm)
- Measurement range from 0.1 to 200 Amps
- Over range up to 350 Amps continuous
- 1ma/A output (model LM102)
- 1mv/A output (model LM103)
- Clothes pin design allows access to tight places
- Frequency response from 48 to 10kHz
- Arrow marker clearly assist in proper orientation for power measurement applications

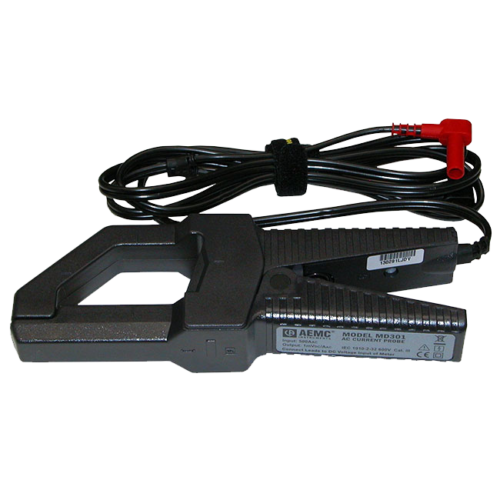

AEMC MD Series – AC Current Probes
- 600A range with mA or mV output
- Unique hook-shaped jaws that enable the user to “pry” into or “hook” onto cables
- Maximum conductor size is 2 x 500kcmil
- Works as a traditional current transformer with ratio of 1000:1
- AC/DC outputs available

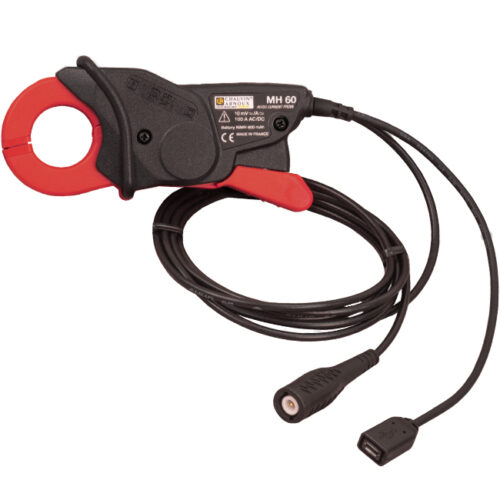

AEMC MH60 – AC/DC Current Probe
- Clamping diameter 1.02″ (26mm)
- Measurement range from 0.5 to 140 Amps AC, 100 Amps Dc
- Measure AC+DC signals
- 10mV/A output
- Automatic compensation for earth’s magnetic influence
- Battery power (8 hour battery life) or USB continuous
- Frequency response from DC to 1 MHz
- Selectable 3 or 30kHz filter selection
- Push button zero adjust
- LED indicators for power, overload and filter selection
- UL 94 V2 self-extinguishing case material

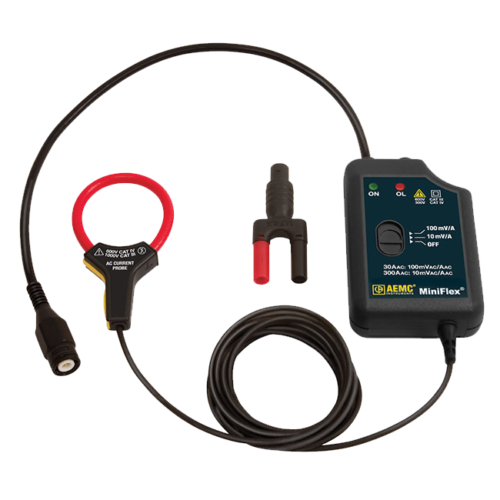

AEMC MiniFlex Series – Flexible Sensors
- Measure from 0.5 to 3000Arms
- Accuracy 1% of Reading +- from 0.2 to 0.25A
- TRMS measurements when connected to a TRMS instrument
- No core saturation or damage if overloaded
- Low phase shift for power measurements
- Measures only AC
- High frequency models available for oscilloscopes
- Excellent linearity
- CE Mark
